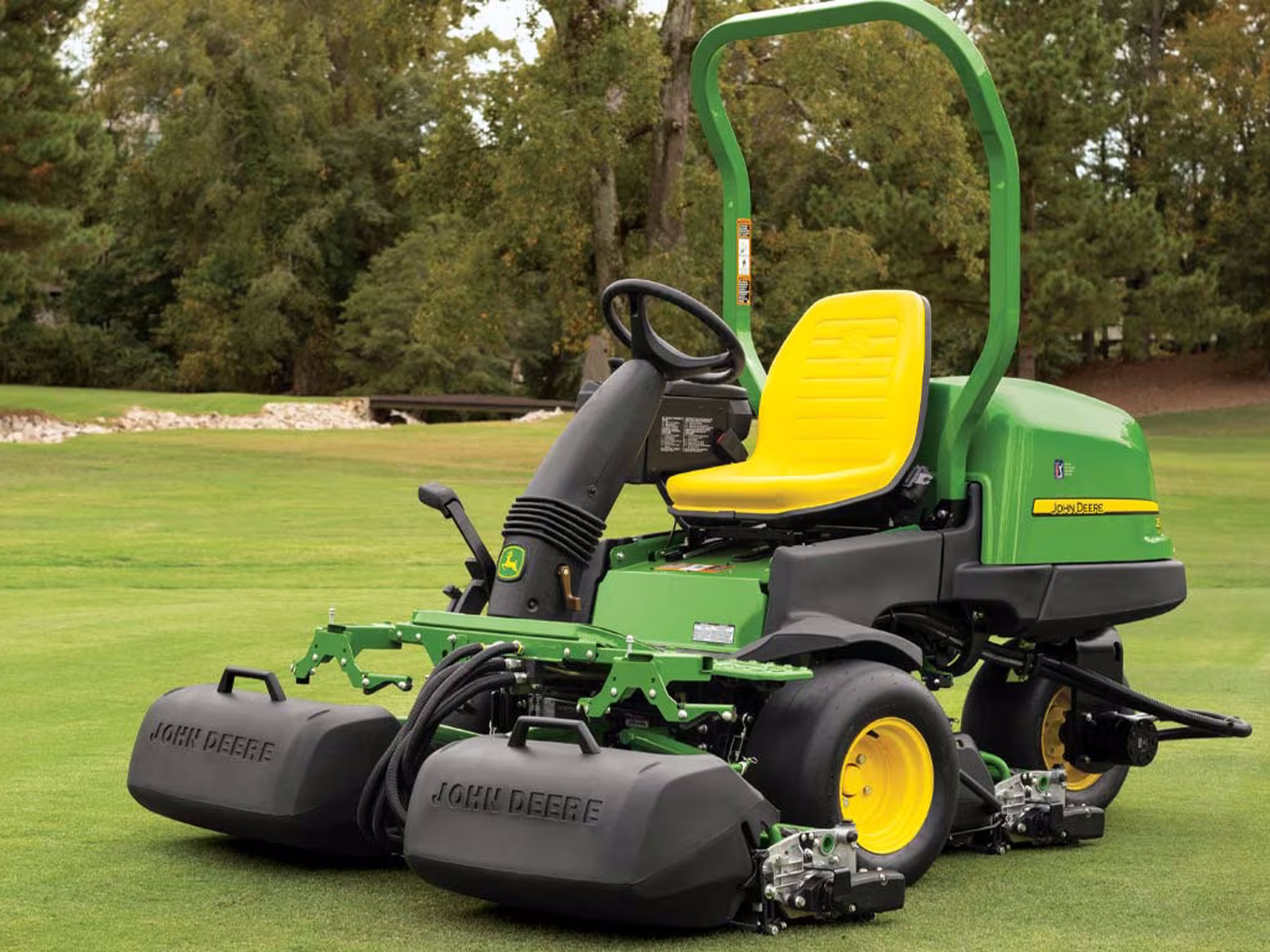

2026 John Deere Golf & Sports Turf 2550 PrecisionCut Triplex Mower

2550 PrecisionCut™
Triplex Mower

• Greatly reduce triplex ring with exclusive offset cutting units
• Save time with Quick Adjust Cutting Units
• Exceptional contour-following and steering of cutting units in turns
• On-board diagnostics

Las características pueden incluir:

Easy access fuel tank with fuel gauge keeps operator productive
The fuel tank is a twin-sheet design to and meets fuel tank regulatory requirements and still has the capacity to get through a normal day without refueling. Easy access to the fuel cap and clear view of the fuel gauge keeps the operator productive all day.

Offset cutting units virtually eliminate triplex ring with a simple change in direction
The innovative offset design staggers wheel tracks in the cleanup cut by simply changing direction of travel each day. This allows the turf an additional day to recover before being driven over again, and serves to minimize triplex ring and compaction.

The cutting units offset to the left-hand side of the machine. This provides good visibility to the center cutting unit. The traction unit frame is designed to maximize visibility down the left-hand side of the machine from the operator's point of view.

Optional weight transfer grass-catcher system transfers clipping weight to frame, rather than to cutting unit
Most golf courses want to mow the greens and collect the grass for a premium cut and even and smooth appearance. The most challenging concern with catching grass with a greens mower is that as the grass catcher fills with material, its weight is transferred to the cutting unit. This problem is multiplied with a riding greens mower because there are three cutting units and grass catchers collecting different amounts of grass, meaning different weights are applied to the three cutting units.

If the weight cannot be removed from the grass catchers, the different weights can cause different heights of cut with each cutting unit, leaving poor playing conditions and after-cut appearance. This is especially noticeable through undulations of a green and on the clean-up pass. The grass catchers on the riding greens mowers have been designed for optimum catching efficiency while maintaining a consistent, effective height of cut.

The exclusive John Deere grass catcher transfers approximately two-thirds of the weight to the vehicle's lift arm. This helps maintain a more-consistent cutting height to ensure a uniform cut across all three cutting units.

The front grass catchers can be removed and installed with one hand because of an innovative clip system. The clip secures the catcher to an adjustable bracket on the lift arm, transferring weight from the catcher to the lift arm as clippings accumulate in the catcher.

The rear grass catcher mounting system simplifies removal and installation of the rear grass catcher and reduces effort.

The retaining bail system for the rear grass catcher also uses the exclusive John Deere design to transfer the weight of the grass catcher to the lift arm.

The grass catcher can be easily removed, without spilling the clippings, by rotating the grass catcher back toward the front of the machine until the front grass catcher lip is above the cutting unit side plate. Then, simply pull it out to the side. This can be accomplished with the cutting unit in the raised or lowered position.

A channel in the cutting unit side frames guides the grass catcher onto the cutting unit. The channel in the castings ensures the grass catcher lip maintains its relationship with the cutting unit when following undulations, providing for better grass catching efficiency.

Adjustable cutting-unit top shields also ensure that grass is thrown into the back of the catcher, even as the reel diameter decreases due to wear. The catchers are shaped and vented to allow the air from the reel to escape while retaining the clippings.

Extensions for the cutting-unit top shields are for use in dry conditions to maximize the flow of dry clippings into the grass catcher. If mowing predominantly in wet-turf conditions, remove the cutting unit shield extensions to reduce buildup and accumulation of clippings on the front of the grass catcher.

Consistent height of cut through contour following, weight transfer, and cutting-unit suspension
The cutting-unit suspension and lift arms are designed with down stops for the lift arms to rest on when the cutting units are lowered to mow. This transfers the weight of the lift arms onto the traction unit frame rather than adding weight to the cutting unit.

The cutting-unit mounting system has a ball-joint swivel designed to allow the cutting unit to float independently of the lift arm. This design minimizes scalping and promotes a consistent height of cut by allowing the cutting unit to easily follow ground contours and steer in turns.

The cutting units can be easily and quickly removed from the lift arms by pulling the quick pin located behind the ball swivel joint and disconnecting the cutting unit support chain from the lift arm. This disengages the cutting unit assembly from the lift arm for service.

The cutting-unit drive motor also has a Quik-Tatch system that allows the technician to quickly remove the motor from the cutting unit for service. Simply loosen the mounting bolt that secure the motor to the bearing housing and twist the motor a quarter turn to remove.

Standard rollover protective structure (ROPS) with seat belts meets ISO 21299 standards
A ROPS and retractable seat belt are standard equipment on the 2400 PrecisionCut™, 2550 PrecisionCut, and 2550 E-Cut™ Hybrid Triplex Mowers. The ROPS meets ISO21299 standards.

Quiet and powerful diesel engine
The 2550 PrecisionCut™ and 2550 E-Cut™ Hybrid Riding Greens Mowers use a 14.6 kW (19.6 hp)* gross (per SAE J1995 at 3000 rpm) liquid-cooled diesel engine for smooth, efficient, and quiet operation.

With the 3-cylinder diesel engine and a large 29.9-L (7.9-U.S. gal.) fuel tank, the 2550 models give the operator power and fuel for a productive day of mowing.

*Engine horsepower and torque information are provided by the engine manufacturer to be used for comparison purposes only. Actual operating horsepower and torque will be less. Refer to the engine manufacturer’s website for additional information.

Easy service access to minimize time to perform daily maintenance tasks
Several serviceability features were incorporated into the design of the 2400 and 2550 PrecisionCut™ Triplex Mowers to make routine checks and adjustments as easy as possible.

Features include:

• Good visibility to components, with a tilt-back hood and tilt-up seat platform. With the hood and seat platform in the raised position, access and visibility to the components underneath is very good.

• All daily service checks — engine oil level, air restriction indicator, engine coolant level (2550 only), and hydraulic oil level — are made from the left side of the machine.
• Quick-attach cutting units — one pin located at the front of the lift arms removes the cutting units from the traction unit with no tools.
• Quick-attach cutting unit motors — just loosen the two hold-down nuts, twist the motor, and pull it out away from the cutting unit.
• Remote grease fittings for the front lift arms are located on the front hydraulic fitting bulkhead. These remotely mounted fittings allow ease of lubrication for the front lift arm pivot pins.
• Electronic controller that provides service diagnostics by means of lighted circuits.
• There is also an access panel on the operator platform that can be easily removed to provide access to the backlap valve and battery.

Smooth and turf tire options to meet a variety of mowing conditions and areas

There are four tire options:

• 18x10.50-10 2-ply smooth tires are recommended for those who want the minimum amount of ground compaction. These tires have a large footprint to spread the weight of the vehicle over a larger area. This tire also lowers the overall height of the machine and reduces ground clearance of the cutting units. Compensation for ground clearance can be made by adjusting the cutting unit chain on the back of the cutting unit.
• 20x10-10 4-ply rated balloon-rounded smooth tires are recommended for those who want maximum ground clearance, increased ply rating and desire to use a more rounded tire. The 4-ply side wall rating has recommended operating tire pressure of 103 kPa (1.03 bar) (15 psi). Increased pressure may leave marks in softer turf conditions.
• 20x10-10 2-ply smooth tires are recommended for those who want maximum ground clearance while operating at the lower tire pressure of 83 kPa (0.83 bar) (12 psi).
• 20x10-10 4-ply rated smooth tires are recommended for those who want maximum ground clearance and increased ply rating. The 4-ply sidewall rating has recommended operating tire pressure of 103 kPa (1.03 bar) (15 psi). Increased pressure may mark in softer turf conditions.
• 20x10-10 turf tires are for those who need additional traction for mowing more difficult areas, such as elevated tees or fairways.

Each of these tire options includes a complete set of three tires and wheels that are all the same size. (This includes the turf tires, which come as a set of three treaded tires.)

55.9-cm (22-in.) cutting unit rear-attaching-point yoke kit for fairways, surrounds, and tees
Low weight and compaction of a riding greens mower with the mowing system of a fairway mower equals great quality of cut in fairways and surrounds.

Many golf courses want to mow their fairways and other areas with riding greens mowers as a way to decrease compaction of the turf. However, the front-attaching-point yoke system used for greens is not the ideal solution for other areas due to the mowing speed, and the terrain is not as smooth as a green.

The 55.9-cm (22-in.) cutting unit rear-attaching-point yoke kit attaches to the rear cutting unit to help keep the rear roller on the ground consistently in undulating terrain. This also substantially improves cut quality by maintaining a consistent height of cut in virtually any condition. Rather than pushing the cutting unit through the turf, the yoke system pulls the cutting unit through the turf keeping the back end of the cutting unit engaged with the turf.

14-blade reel lowers frequency of clip

Using the 14-blade reel on greens mowers will lower the frequency of clip and also provide a clean, smooth cut. It can increase the playability of the putting surface and greens speed.

Frequency of clip (FOC) is defined as the distance traveled between consecutive cuts. In other words, it is how far the machine moves from the time one blade passes across the bedknife until the next blade passes. The lower the frequency of clip, the less distance that is traveled until the next blade passes.

There is a point of diminishing returns when it comes to frequency of clip. The less distance the mower travels between consecutive cuts, the more times the same grass blade is going to be impacted by the reel. Too low a frequency of clip can cause bruising of the turf - especially in the overlap from pass to pass.

Frequency of clip is often used as a measurement of cut quality, however there are other key factors that attribute to gaining good quality of cut. The factors that lead to good cut quality are:

• Geometry of the cutting unit
• Sharpness of reels and bedknife
• Proper cutting-unit setup (parallel and bedknife-to-reel clearance)
• Height of cut (HOC) (effective versus bench HOC)
• Bedknife selection
• Roller selection for the turf conditions
• Turf conditions

The geometry of John Deere cutting units makes the optimum range for frequency of clip between 0.160 in. (4.064 mm) and 0.190 in. (4.824 mm) for walk greens mowers. This is where the technology of the PrecisionCut™ walk greens mowers excels and provides a superior cut and after-cut appearance.
