2026 SCAG Power Equipment AS30-23CV-DS
Póngase en contacto
Descripción
2026 SCAG Power Equipment AS30-23CV-DS
Quick and Simple Aeration

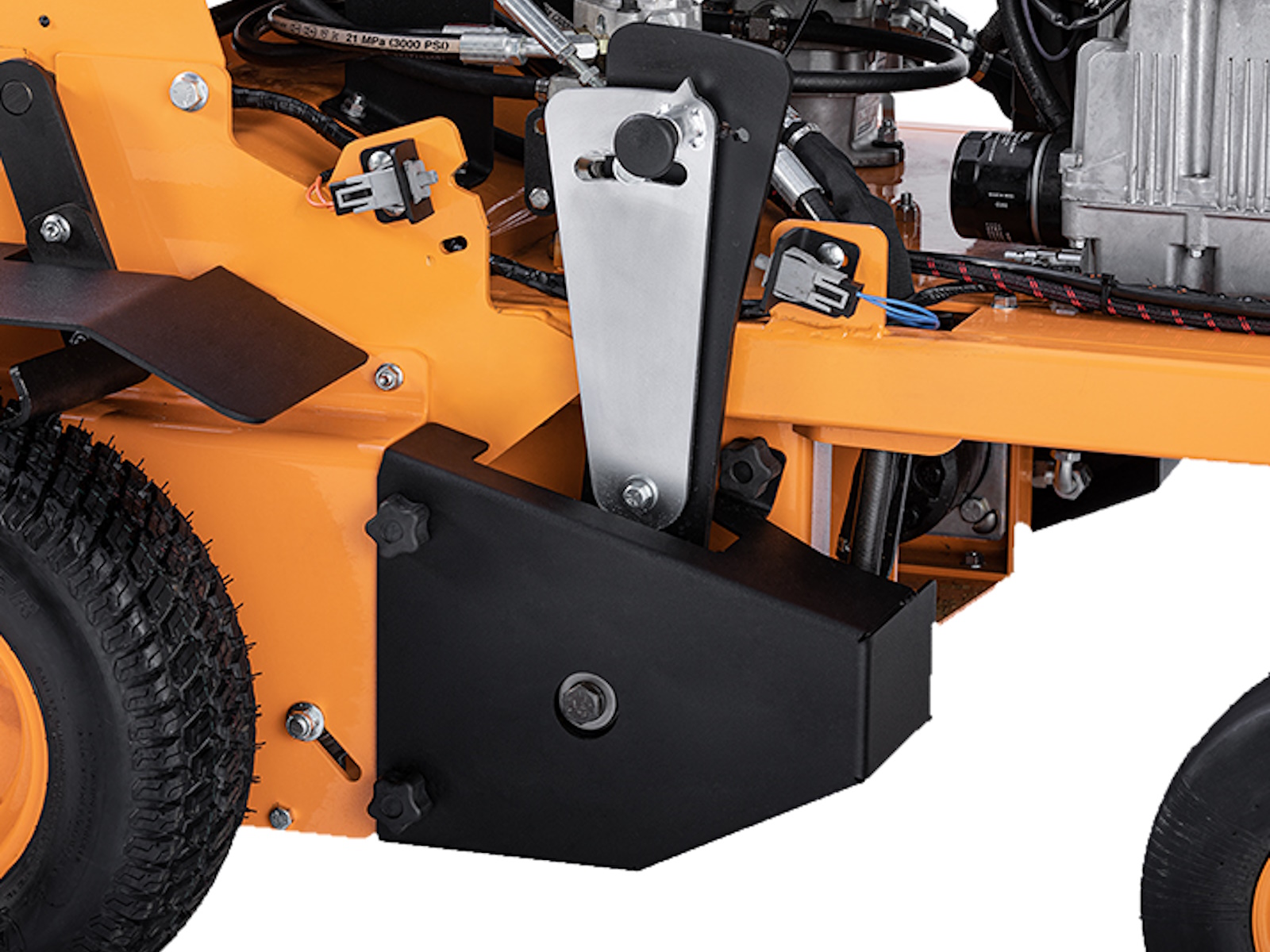

EASY DEPTH ADJUSTMENT AND ENGAGEMENT
Featuring a simple and intuitive depth selection pin with easy-grip rubber knob, select aerating depths of 1” to 4” in 1/2” increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.
Las características pueden incluir:
Quick and Simple Aeration
EASY DEPTH ADJUSTMENT AND ENGAGEMENT
- Featuring a simple and intuitive depth selection pin with easy-grip rubber knob, select aerating depths of 1” to 4” in 1/2” increments to meet the needs of each specific property. Hydraulic tine engagement, via a convenient foot-activated switch, allows you to keep your hands on the steering controls for maximum productivity and safety. Plus, a tine activation switch on the instrument panel prevents accidental engagement or disengagement while working or transporting.
Drive Control Levers
ACCESSIBLE CONTROLS
- Incredibly easy to use, its ergonomic drive control levers make it a cinch to maneuver and allows you to get more done.

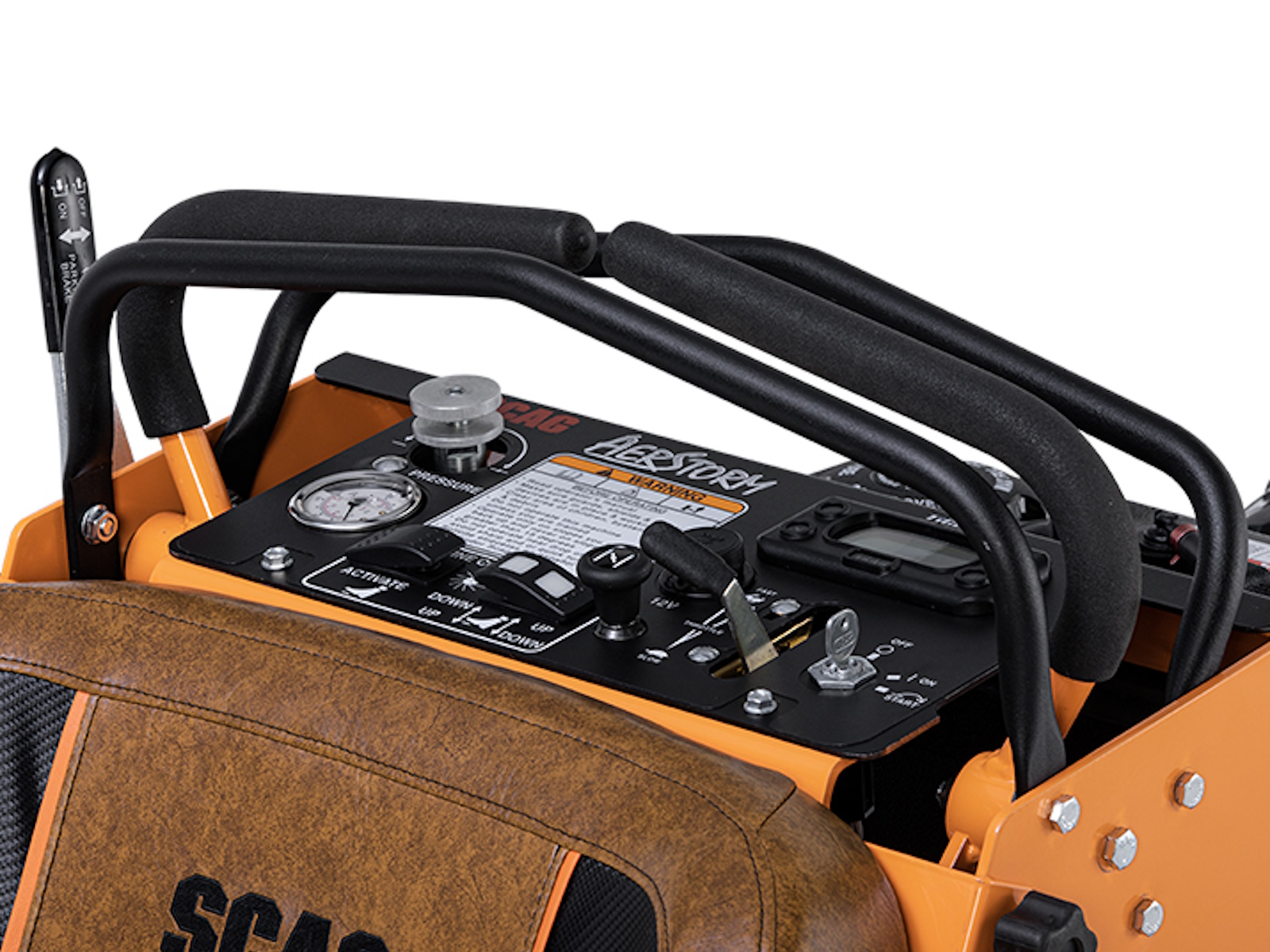

Intuitive Instrument Panel
STAY IN THE LOOP
- A full-featured and easy-to-view instrument panel keeps you informed of exactly what you need to know.

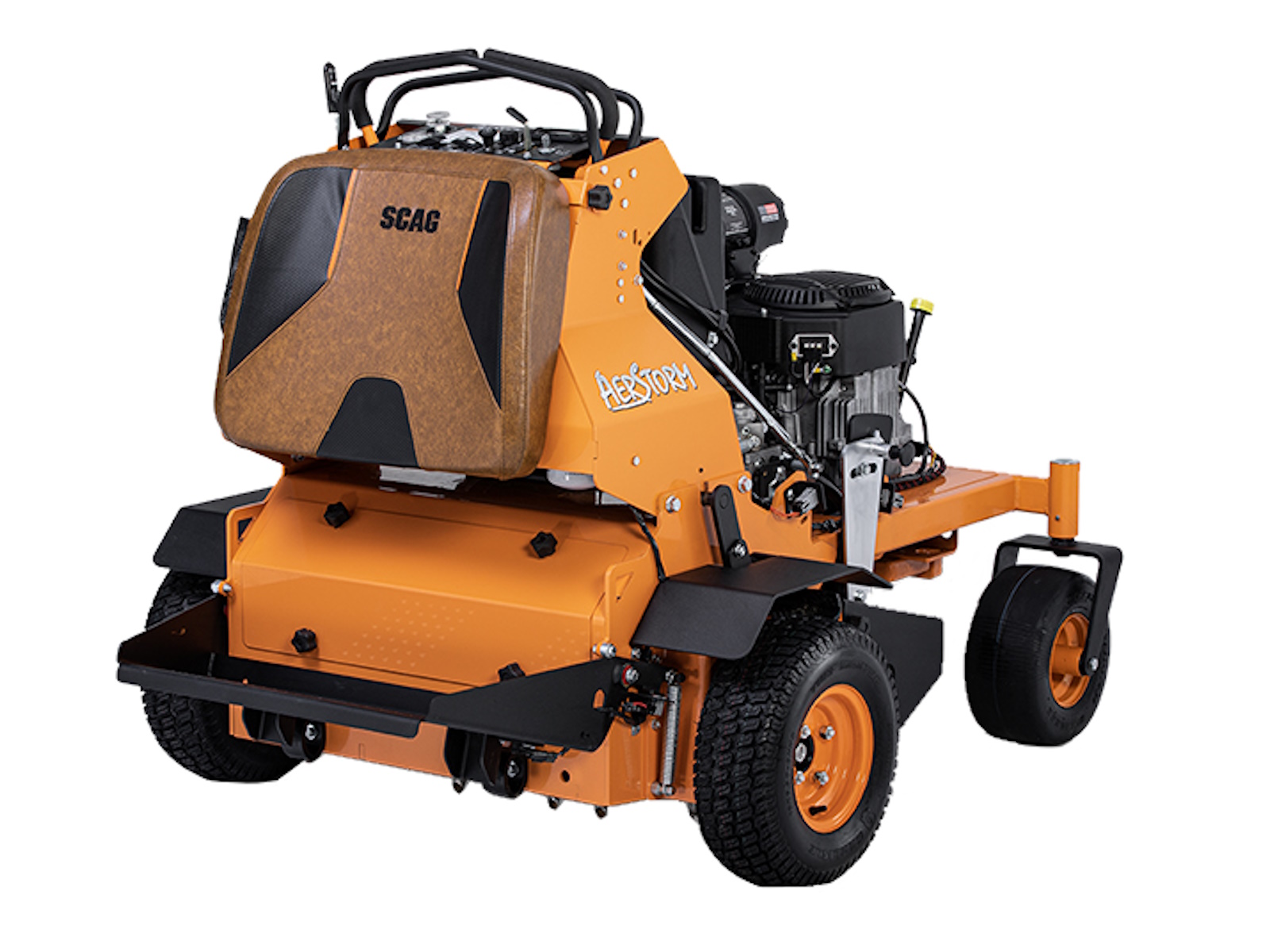

Operator Platform
EXPERIENCE AN UNMATCHED, ULTRA-COMFORTABLE RIDE
- A spacious operator platform featuring suspension and a padded, bolstered cushion ensures a smooth, comfortable ride all day long.
Ease of Maintenance
MORE UPTIME
- Removable cushion and lower panel allow quick and easy service access to hydro tank and tines.

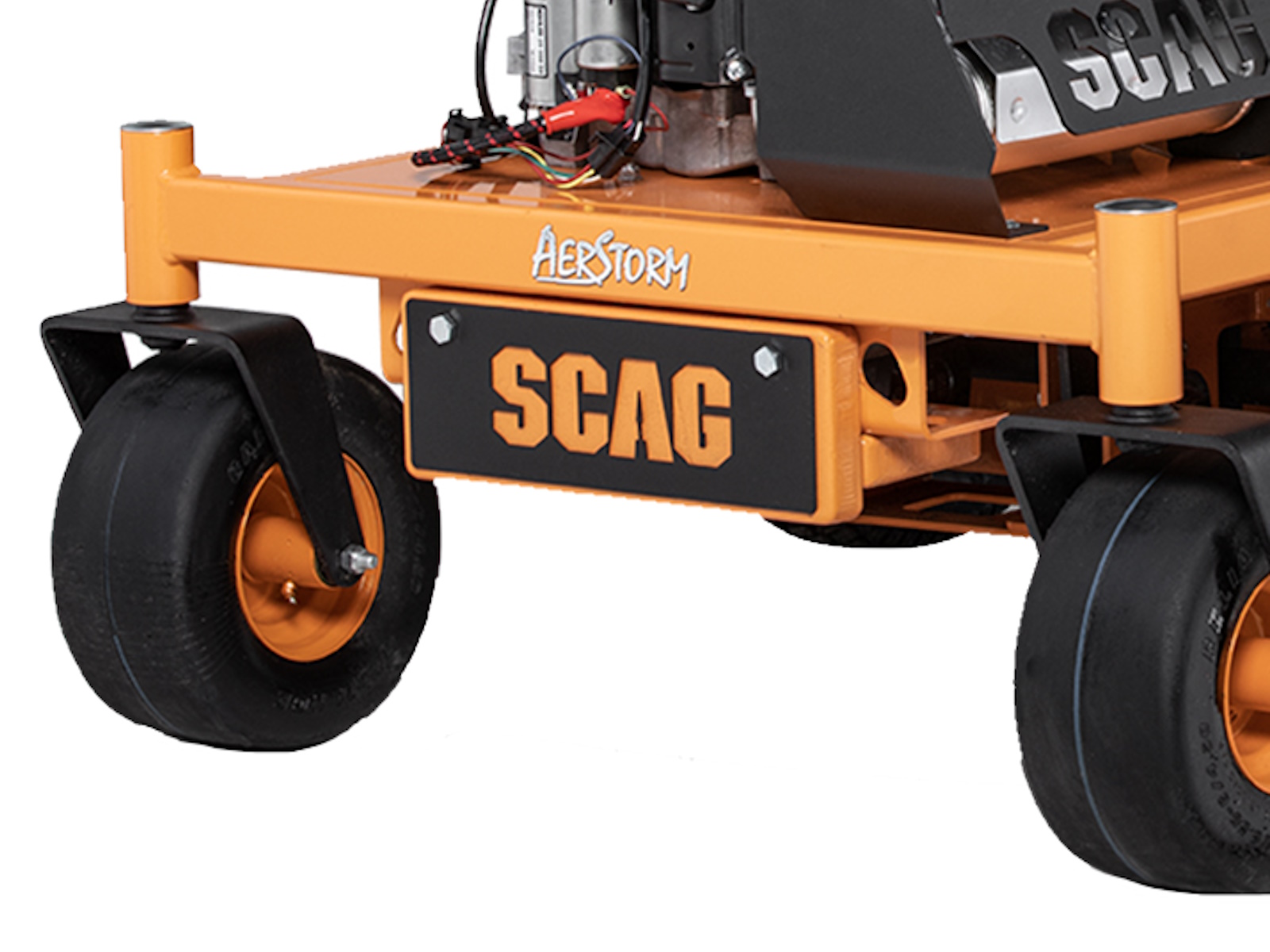

Heavy-Duty Frame
SOLID DESIGN FOR YEARS OF DEPENDABLE SERVICE
- Heavy-duty, durable construction ensures years of dependable service and worry-free productivity.

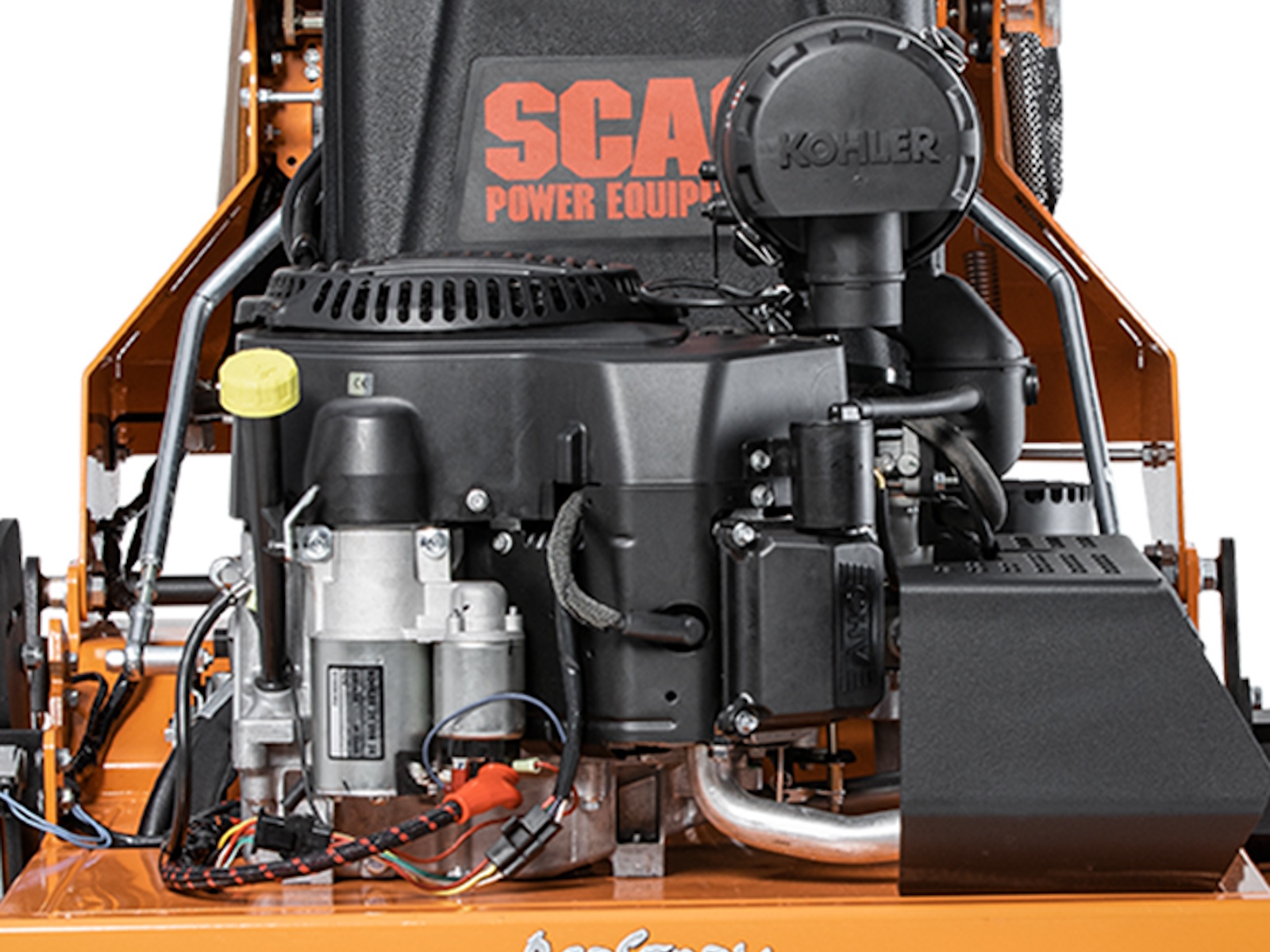

Powerful and Efficient Engine
HUGE POWER, UP TO 23 HP
- 23 hp Kohler® Command Pro® engine packs the power you need alongside exceptional efficiency and dependable performance.
Información
Industria
Maquinaria eléctrica / Césped
Marca
Equipos eléctricos SCAG
Modelo
AS30-23CV-DS
Acabado
Base
Año
2026
Precio de venta al público recomendado por el fabricante
N/A
Categoría
Aireador
Subcategoría
General
Especificaciones
Tipo de motor
Kohler® Command PRO® – with Drop Seeder Kit
Familia
Kohler Command Pro
Capacidad de combustible
Tank: 5.5 gallon (20.8 liters) tank with molded-in cup holder
Tamaño de la cubierta
Thickness: 1/4 in steel | Operator Platform: Heavy gauge steel with extruded star pattern for no-slip footing. Dual adjustable suspension for operator comfort level preference. | Operator Comfort Pad: Large heavily-bolstered operator cushion can be easily removed without tools for access to hydraulics
Neumáticos
Drive: 18 x 6.5 – 8 four-ply pneumatic tubeless, radius edge
Longitud
68.6 in
Style
Governor: Mechanical type governor with variable speed control set at 3600 rpm (±100 rpm), idle set at 1800 rpm (±150 rpm) | Air Intake Group: Large capacity 2-stage canister air filter | Exhaust Group: Single exhaust canister muffler | Fuel Pump Group: Integral fuel pump with inline fuel filter, internal fuel line vent; float feed; two barrel, adjustable idle, afterfire solenoid. | Oil Pump Group: Full pressure lube, with full-flow filter, 2 quart oil capacity | Axles: 1.25 in heavy-duty, straight motor shafts
Cilindrada del motor
747 cc (45.6 cubic inch)
RPM
3600 RPM
Altura
51.2 in
Tipo de combustible
Gas
Motor
Heavy-duty industrial/commercial | Torque: 40.3 ft-lbs. (peak) | Cylinders: 2 cast-iron sleeves | Brakes: Lever actuated linkage to brakes on both drive wheels | Hydro Pumps: Two Hydro-Gear PG Series 10cc pumps with dump valves for movement without running engine; one cooling fan | Drive Wheel Motors: Two Parker TG 14.5 cu. inch cast-iron high torque wheel motors | Hydro Fluid Cooling Group: 3.0 qt. capacity cooling reservoir; uses SAE 20W50 fluid and 10 micron filter | Steering/Travel Control: Twin lever steering control with individual control to each wheel | Dump Valves: Allows for movement without engine running | Wire Harness: 14 and 16 gauge wire | Safety Group: Footplate-actuated operator presence system interlock to engine kill | Forward Speed Range: 0 up to 7.0 mph | Reverse Speed Range: 0 up to 3.0 mph
Potencia
23.5 hp | Starter/Electrical/Charging: System 12 volt “maintenance-free” sealed battery with alternator, solid state ignition with key start. 15 amp charging system, regulated.
Ruedas
Drive: 18 x 6.5 – 8 four-ply pneumatic tubeless, radius edge | Caster: 13 x 6.5 – 6 Flat-Free (semi-pneumatic)
Ancho
49.8 in | Tine: 30 in
Par motor
40.3 ft-lbs. (peak)
