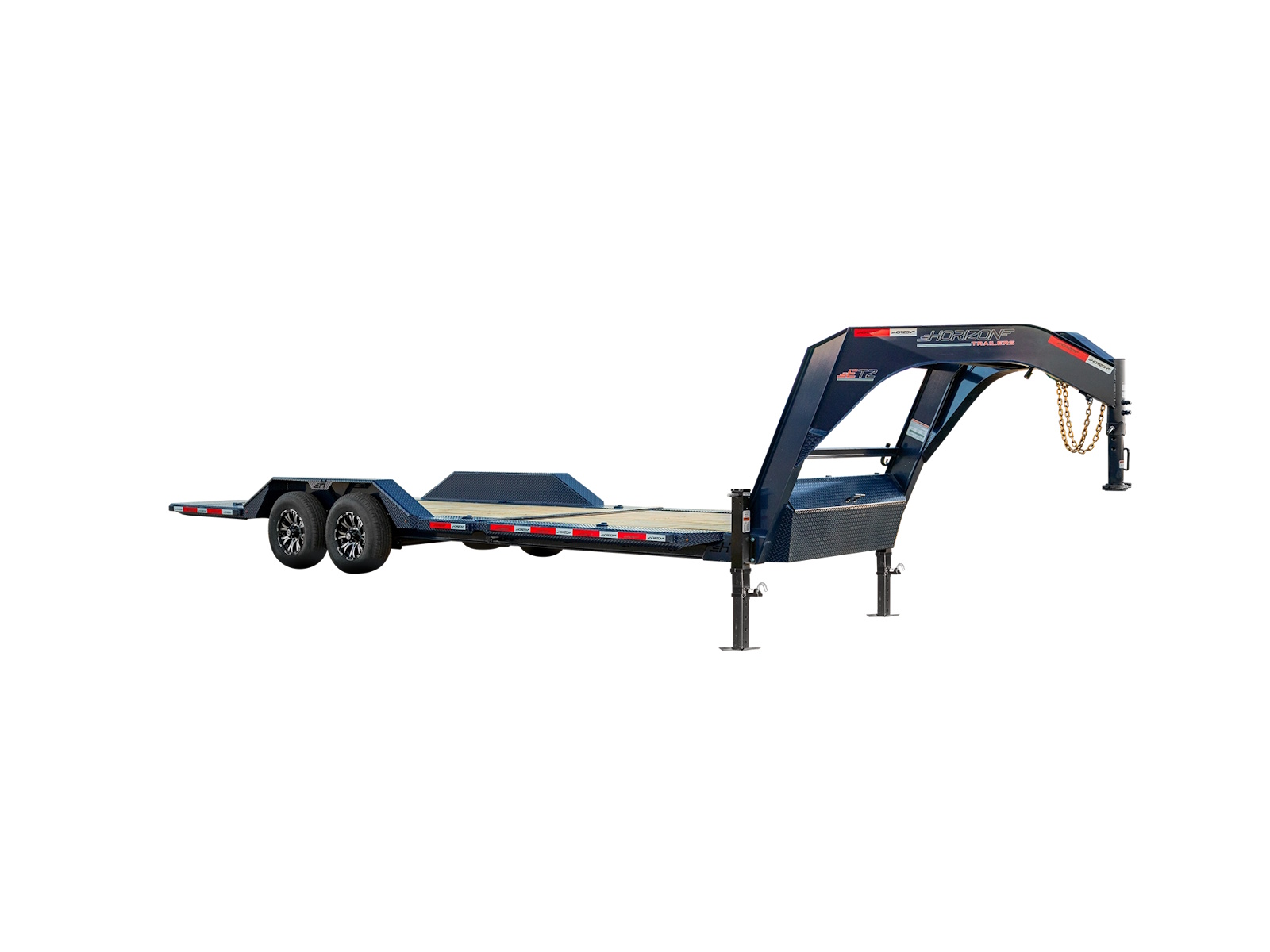

2026 Horizon ETZ 15.7K 83 in GN 26 ft

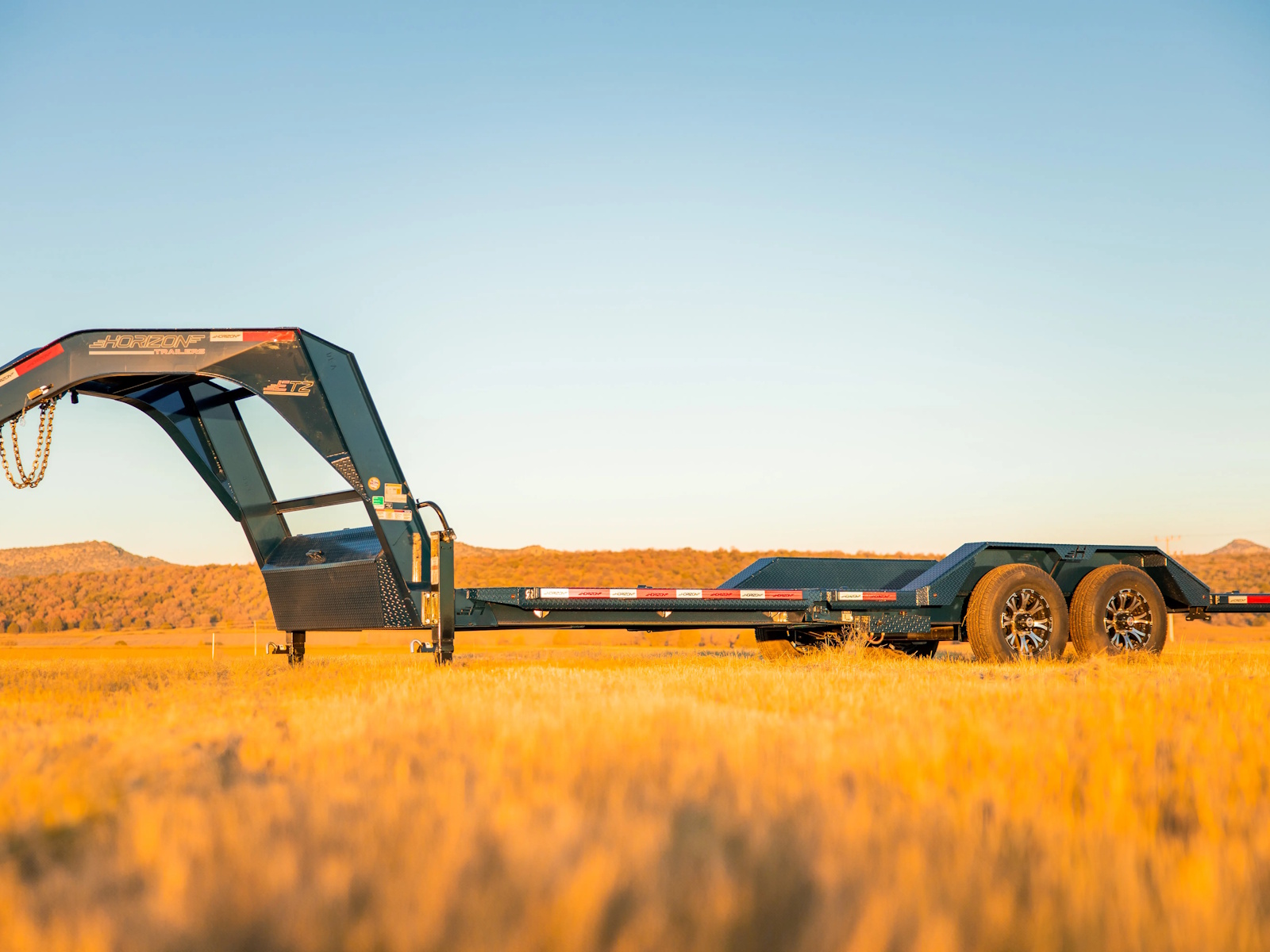

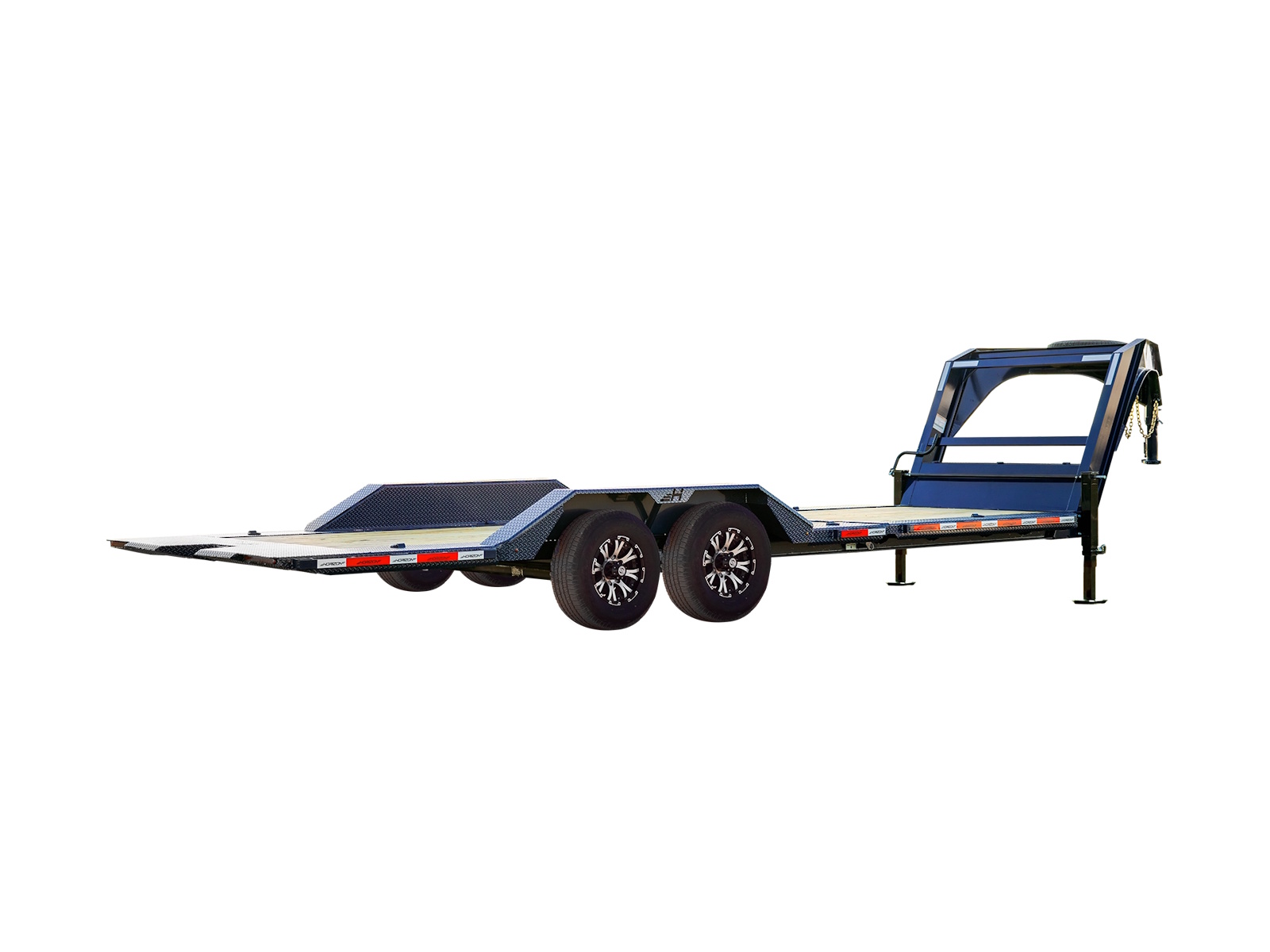

The ETZ 15.7K 83" Gravity Tilt Deck trailer is a high-performance equipment trailer featuring a robust 15,700 lbs GVWR, premium Neckboss I-Beam construction, and a smooth Gravity Up/Down tilt system. With 16' tilt deck, durable powder-coated finish, and optional lengths from 20' to 26', it's designed for reliability and versatility in heavy-duty applications.

Built to Handle Heavy Loads

UNMATCHED STRENGTH AND DURABILITY

The ETZ 15.7K 83" Gravity Tilt Deck trailer combines an 8" I-Beam frame with a GVWR of 15,700 lbs for unbeatable strength. Its 16' tilt deck features a smooth automatic lowering system, making loading easier than ever. Choose from lengths between 20' and 26' to suit your needs. Take on tough jobs with confidence!

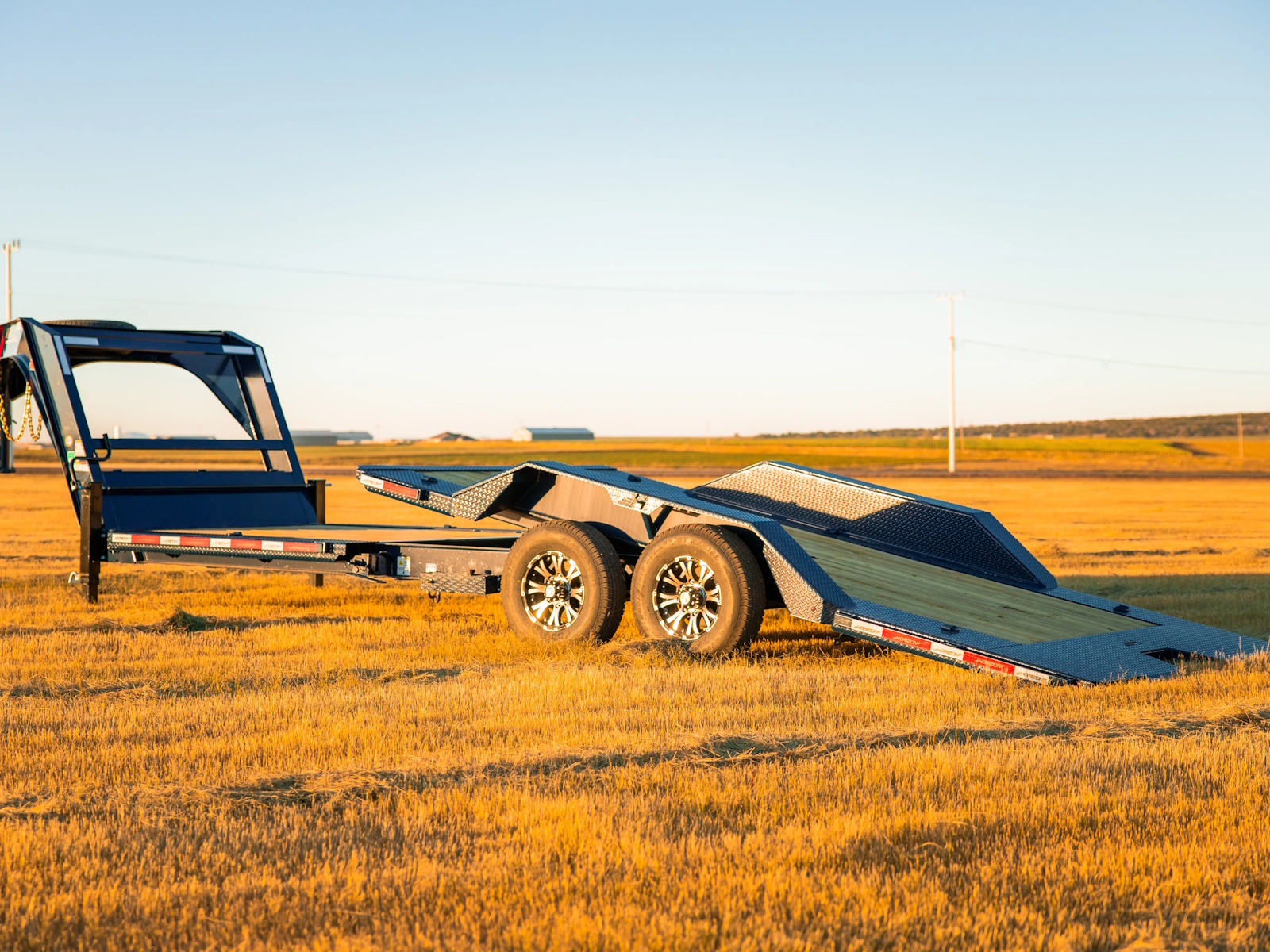

Innovative Gravity Tilt System

EFFORTLESS LOADING AND TRANSPORTATION

The ETZ 15.7K 83" trailer's Gravity Up/Down system simplifies loading heavy equipment. Its 22" deck height and 83" width accommodate various cargo sizes, while removable fenders enhance versatility. With top-quality radial tires and DOT-approved LED lighting, this trailer ensures safety and reliability on every haul.

Engineered for Efficiency

PREMIUM FEATURES FOR PROFESSIONALS

Outfit your ETZ 15.7K 83" trailer with premium options like hydraulic jacks, full Blackwood rubber-infused decking, and additional D-rings for optimal performance. Its Mega Lockable Toolbox and winch-ready design add practicality, while the military-grade powder-coated finish offers long-lasting durability. Upgrade to match your professional needs today!

Las características pueden incluir:

Highlights

• 8" I-Beam (13 Lbs/Ft)
• Neckboss 10 Engineered I-Beam
• Mega Lockable Toolbox
• Robust Toolbox Latch
• Weld On Spare Tire Mount
• Outer Deck Frame 3/16" Diamond Plate
• 16' Tilt Deck
• 2 D-Rings In Between Fenders
• 2" X 5" X 7ga. Tubing Bed Frame (Tilt)
• 83" Wide In Between Fenders
• Storage Box Behind Neck/Winch Ready
• Removable Fenders

Trailer Specs

Dimensions

• Available Lengths: 20', 22', 24', 26'
• Deck Height: 22"
• Deck Width: 83"

Weight Rating

• GAWR: 7,000 Lbs
• GVWR: 15,700 Lbs

Acabado

• Paint Type: Powdercoat
• Prep: Steel Grit Blasted

Colores

• Military Green
• Desert Tan
• Flame Orange
• Midnight Black
• Spectra Yellow
• Blue Horizon
• Lime Green
• Ash Grey
• True Red
• Pearl White
• Cloud Grey
• Navy Blue

Garantía

• Axle Warranty: 10 Year Torsion Axle Warranty
• Trailer Warranty: 3 Year Frame / 1 Year Parts Warranty

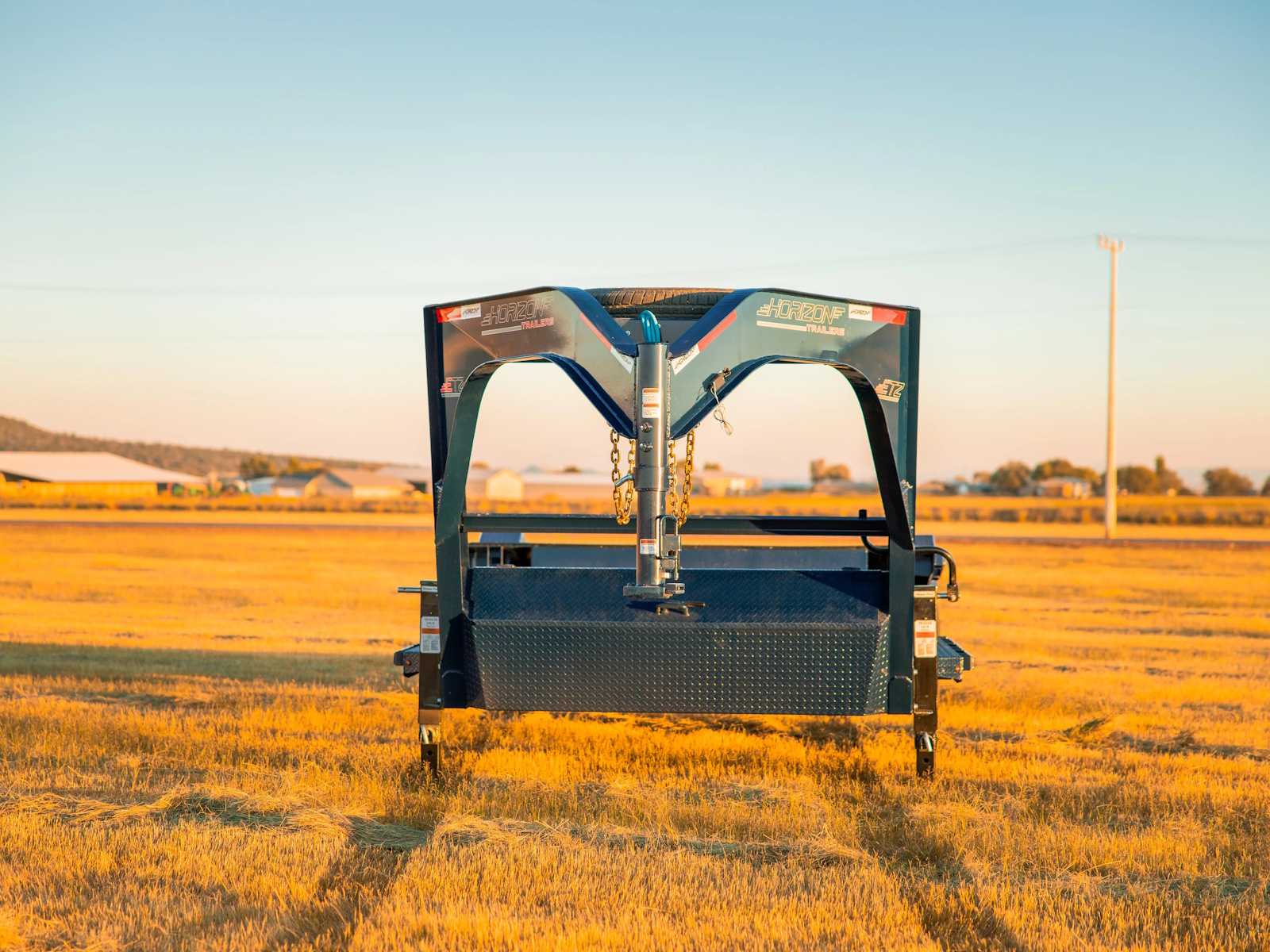

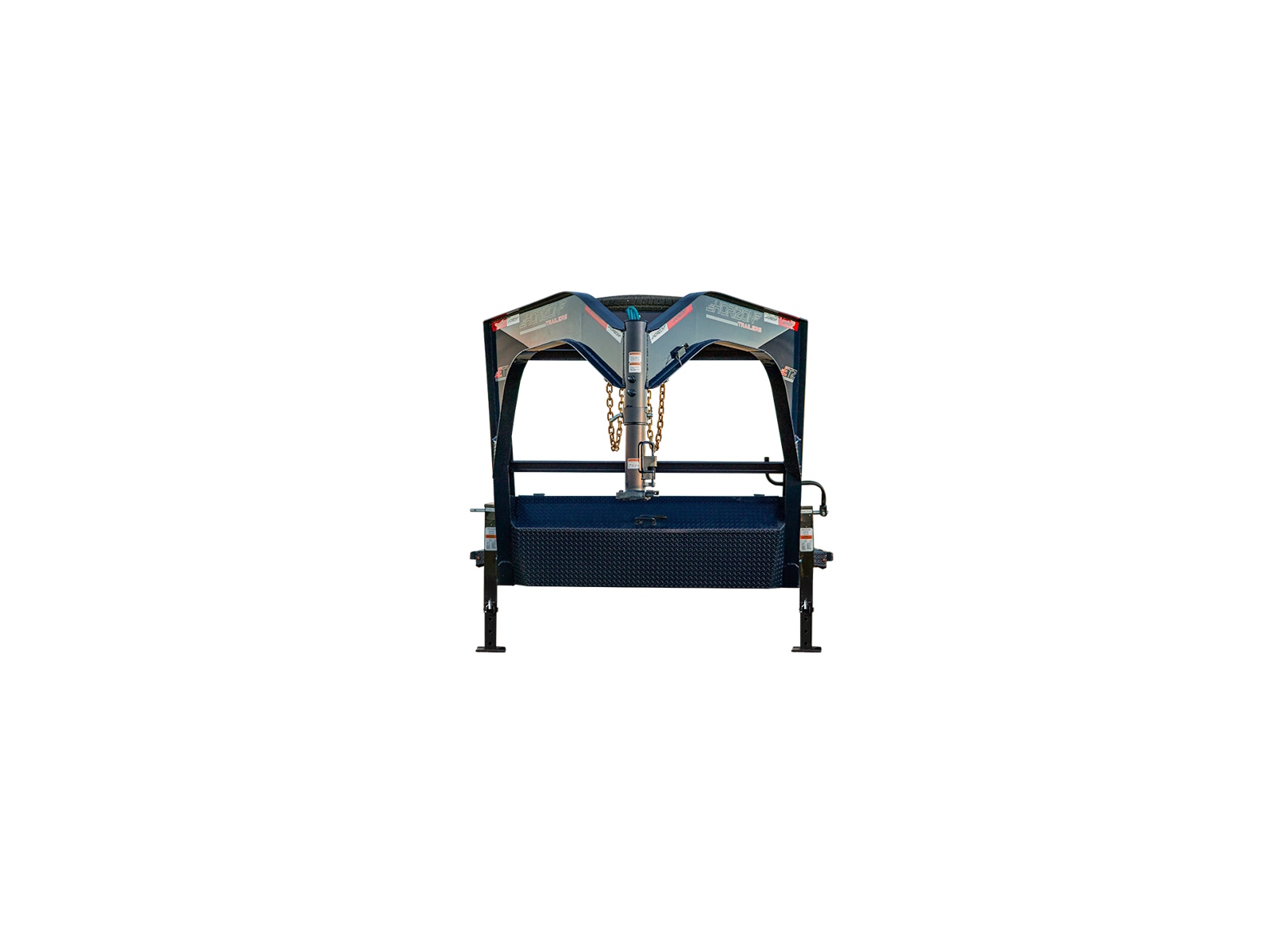

Lengüeta

• Type: Neckboss 10" Engineered I-Beam
• Length: 94" Long (From Behind Riser)
• Height: 70" High (From Underneath Neck)
• Spare: Weld On Spare Tire Mount
• Storage Behind Neck: Storage Box / Winch Ready

Acoplador

• Standard Coupler: Adjustable 2-5/16" Gn Coupler (30,000 Lbs)

Jacks

• Front Jack: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 Lbs)

Caja de herramientas

• Toolbox: Mega Lockable Toolbox

Safety

• Safety Chains: 3/8" Grade 70 Safety Chain W/Clevis Hook (2 Each)

Chasis

Chasis

• Main Frame: 8" I-Beam (13 Lbs/Ft)

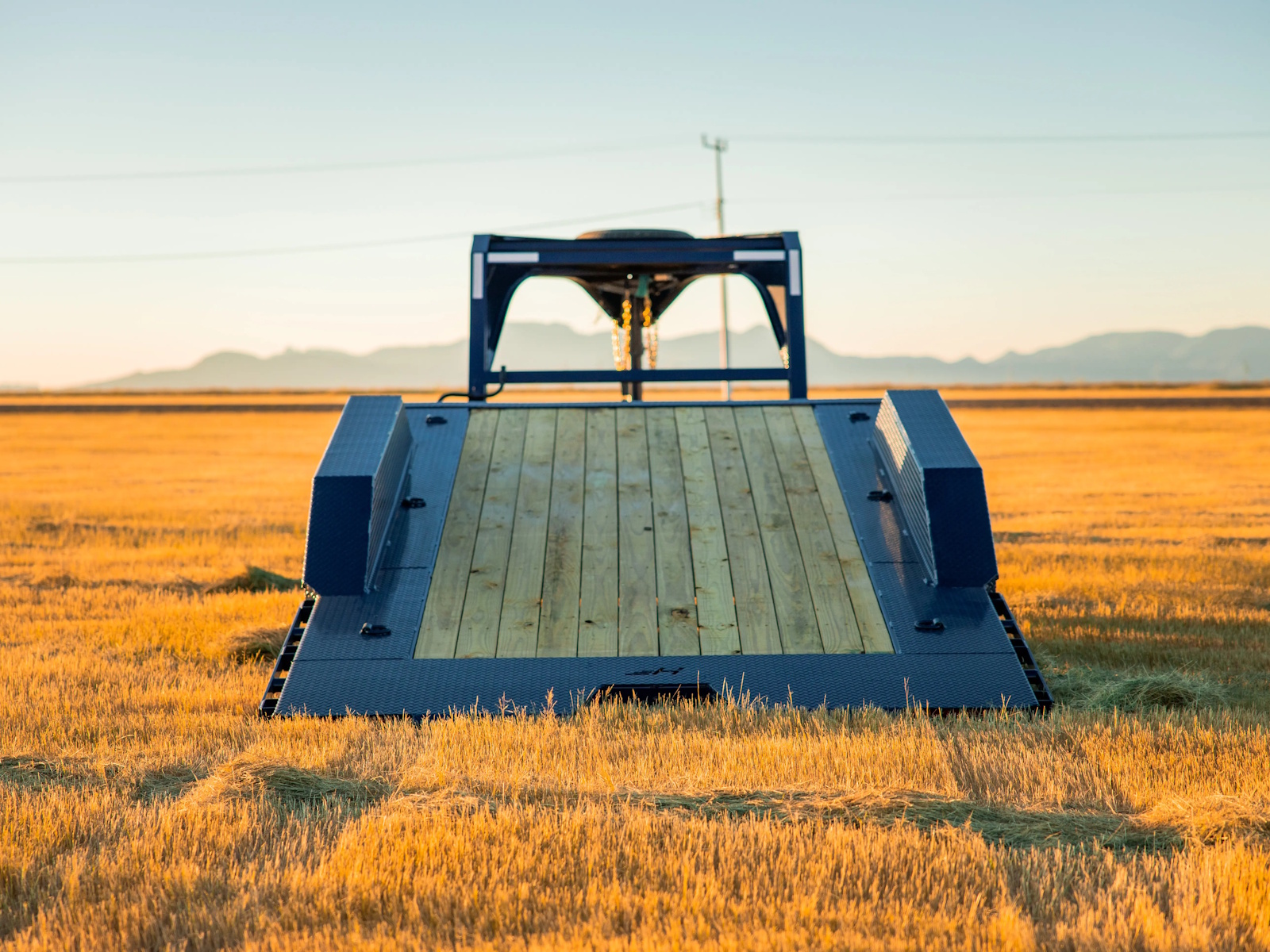

Deck

Bed

• Flooring: Pine Lumber Floor
• Crossmembers: 3" Channel (3.50 Lbs/Ft) 16" Spacing
• Deck Height: 22"
• Deck Width: 83"
• Width Between Fenders: 83"
• Weld On D-Rings: 2 - D-Rings In Between Fenders
• Bolt On Swivel D-Rings: 2 - Flush Mount Galvanized Swivel D-Rings Front Of Trailer
• Tie Down Slots: Slots For Latch On Tie Down Fittings Front End Of Deck
• Tilt Deck Lenght: 16'
• Tilt Deck Frame: 2" X 5" X 7ga. Tubing Bed Frame
• Tilt Angle: 13°

Sides

• Rub Rail: 2" X 3/8" Rub Rail
• Stake Pockets: 1,5/8" X 3,5/8" (Id) Stake Pockets (Spaced At 24")
• Spools: 2" X 10ga. Pipe Spools (Spaced At 24")
• Fenders: 12ga. Removable Diamond Plate Steel Fenders

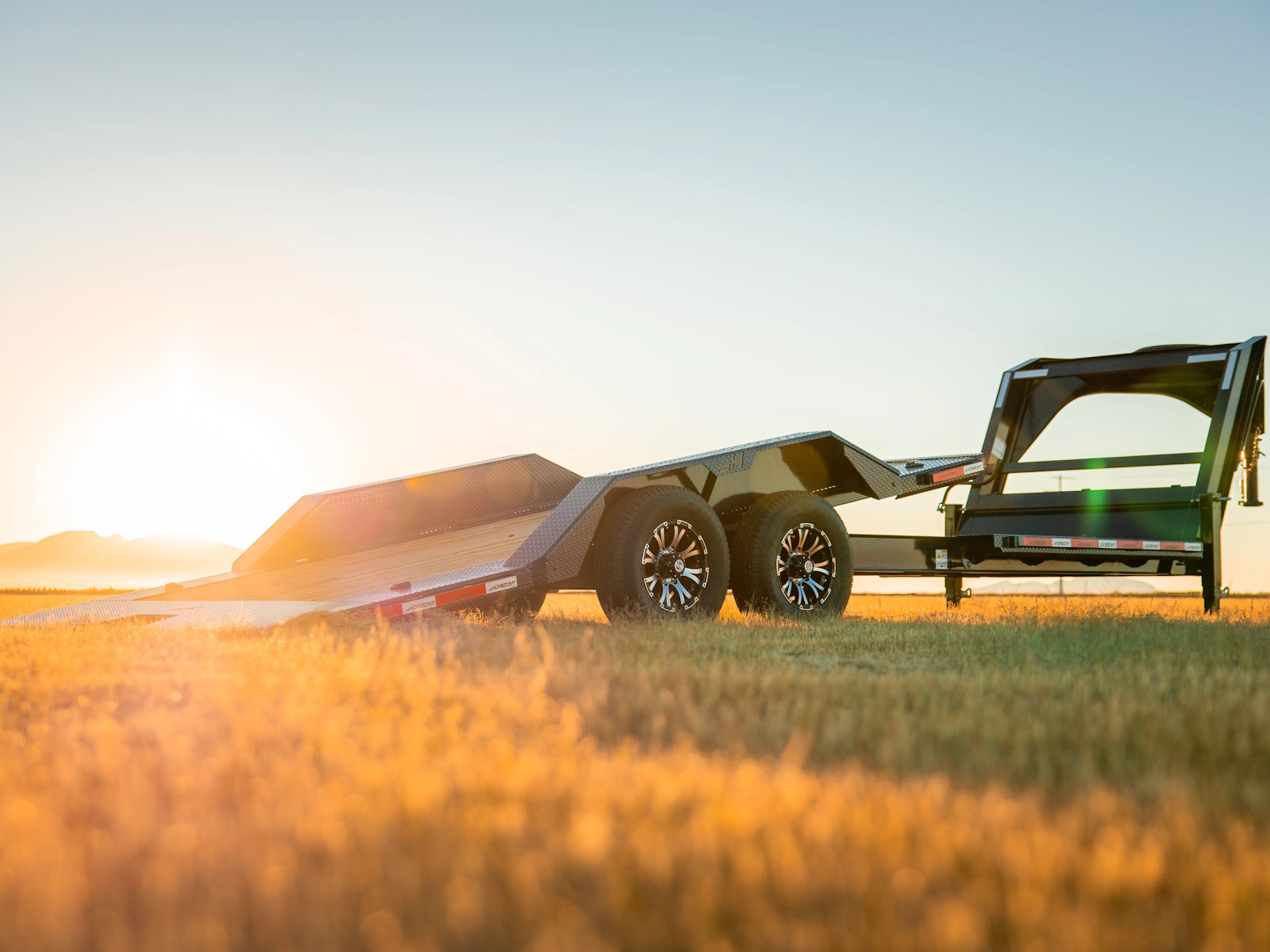

Tilt System

Hydraulics

• System: Gravity Up / Down
• Cylinder: 1 - 3" X 16" Cylinder
• Tank: Large Reservoir
• Valve: 3 Way Valve Control

Tren de rodaje

Neumáticos

• Type: Radial Tires
• Size: ST235/80R16
• Ply: 10
• Rating: 3,520 Lbs
• Rims: 16" Black Mod Wheels

Suspensión

• Axle Type: 7k Electric Brake Auto Adjust Oil Bath Torsion Axles
• Bolt Pattern: 8 On 6.5"
• Axle Count: 2
• Suspension Type: Torsion
• Axle Warranty: 10 Year Torsion Axle Warranty

Electrical And Lighting

Battery And Charging

• Breakaway System: 2382 Brightway Group Electric Breakaway Kit
• Wiring Harness: All-Weather Wiring Harness (7-Way Rv)
• Frame Wiring: Double Insulated Wiring Harness

Lighting

• Lights: Dot Approved Tecniq Led Lights

Safety

• Reflective Tape: 3m Dot Compliant Reflective Tape

Options

Base Model

• ETZ2GN2083-15.7k ETZ GN 20' X 83 15.7k Gravity Tilt Deck Trailer
• ETZ2GN 2283-15.7k ETZ GN 22' X 83" 15.7k Gravity Tilt Deck Trailer
• ETZ2GN 2483-15.7k ETZ GN 24' X 83" 15.7k Gravity Tilt Deck Trailer
• ETZ2GN 2683-15.7k ETZ GN 26' X 83" 15.7k Gravity Tilt Deck Trailer

Lengüeta

• ETZ-104 12k Ram 2 Speed Jacks
• ETZ-106 12k Hydraulic Jacks
• ETZ-302 B" GN Riser Increase
• 503-007 Shocker Hitch 2,5/16" Gn Coupler (30,000 Lbs)

Chasis

• ETZ-607 8 I-Beam (15 Lbs/Ft] Frame Upgrade

Deck

• ETZ-402 12" Crossmember Spacing
• 506-005 Full Deck Blackwood "Classic" Rubber Infused Lumber
• ETZ-420 12ga, Diamond Plate Steel Deck
• 508-001 4 Additional D-Rings Welded Across Deck (1/2"-4,000 Lbs)
• 508-002 6 Additional D-Rings Welded Across Deck (1/2"-4,000 Lbs]
• 508-003 B Additional D-Rings Welded Across Deck (1/2"-4,000 Lbs)
• 508-009 4-Latch On Tie Down Fittings 2 O-Ring (4,000 Lbs)
• 508-010 6-Latch On Tie Down Fittings 2 O-Ring (4,000 Lbs)
• ETZ-219 Storage Box Integrated In Deck In Front Of Trailer (37"L X 35"W X 10"D]

Lift System

• 509-016 Tuff Wireless 2 Button Remote (Hydraulic Jacks)
• 509-018 Tuff Wireless 4 Button Remote (Hydraulic Jacks - Winch)

Winch Add One Installed In Storage Box On Neck)

• 504-012 13.5k Steel Cable Winchmax Winch
• 504-013 13.5k Synthetic Rope Winchmax Winch
• 504-014 175k Steel Cable Winchmax Winch
• 504-015 17.5k Synthetic Rope Winchmax Winch

Running Gear
Tire Upgrade Options

• 501-002 4-ST235/85R16 14 Ply Tires Singles (4,400 Lbs]

Aluminium Wheels Options

• 501-003 4-Aluminum Rims W/ ST235/80R16 10 Ply Tires (3,520 Lbs)
• 501-004 4-Aluminum Rims W/ ST235/85R16 14 Ply Tires (4,400 Lbs)

Spare Tire Options

• 501-103 ST235/80R16 10 Ply Tire Single (3,520 Lbs]
• 501-104 ST235/85R16 14 Ply Tire Single (4,400 Lbs)
• 501-105 Aluminum Rims W/ST235/80R16 10 Ply Tire (3,520 Lbs)
• 501-106 Aluminum Rims W/ ST235/85R16 14 Ply Tire (4,400 Lbs]

Electrical And Lighting

• 505-001 10 Watt Solar Panel
• ETZ-305 2-Cargo Lights Mounted On Riser

Acabado

• ETZ-815 20ft & Up Zinc Primer Undercoat
• ETZ-802 Fenders Painted Black
