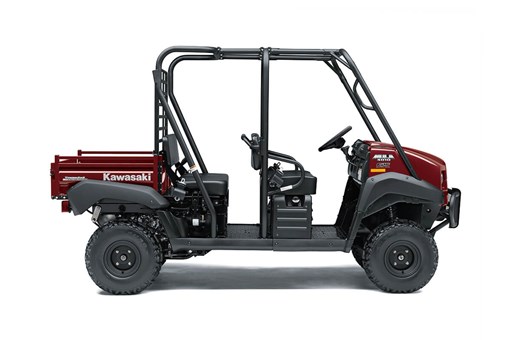

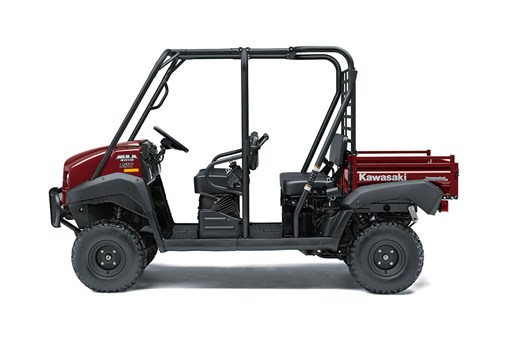

2026  KAWASAKI  Mule 4010  Trans4x4 - K10061

OVERVIEW
The MULE 4000 Trans™ and MULE™ 4010 Trans4x4® side x sides are versatile, mid-size, 2- to 4-passenger machines that are capable of putting in a hard day of work as well as touring around the property. With the Trans Cab™ system, you get enough room for materials or your entire crew.

FEATURING:
617cc, V-TWIN, 4-STROKE ENGINE
2- TO 4-PASSENGER TRANS CAB™ SYSTEM
1,200-LB TOWING CAPACITY
STEEL CARGO BED WITH 800-LB CAPACITY
KAWASAKI STRONG 3-YEAR LIMITED WARRANTY

ADDITIONAL VEHICLE FEATURES:
Selectable 2WD/4WD/dual-mode rear differential with diff. lock
Electric Power Steering (EPS)
Continuously Variable Transmission (CVT) with (H,L,N,R)
Steel front bumper and steel cargo bed

Engine 4-stroke, 2-cylinder, OHV, 90° V-twin, Liquid-cooled
Displacement 617cc
Maximum Horsepower 20.0 hp¹ @ 3,600 rpm
Maximum Torque 34.7 lb-ft @ 2,500 rpm
Bore x Stroke 76.0 x 68.0mm
Compression Ratio 10:3:1
Fuel System DFI® with 34mm Mikuni throttle body
Transmission Continuously Variable Transmission (CVT) with (H,L,N,R)
Final Drive Selectable 2WD/4WD, shaft. Dual mode rear differential with differential lock
Engine Braking No
Alternator Output (max) 23 amp

Front Suspension / Wheel Travel MacPherson Strut/3.9 in
Rear Suspension / Wheel Travel DeDion Axle/2.8 in
Front Tires 23 x 11-10
Rear Tires 23 x 11-10
Steering Rack-and-pinion w/ Electric Power Steering (EPS)
Front Brakes Drum
Rear Brakes Drum
Park Brake Type Independent, mechanical drum
Ground Clearance 7.1 in
Fuel Capacity 6.3 gal
Turning Radius 12.8 ft
Cargo Bed Dimensions (LxWxH) 50.4 x 47.6 x 11.2 in (2-person) / 30.3 x 47.6 x 11.2 in (4-person)
Cargo Bed Load Capacity 800 lb (2-person) / 401 lb (4-person)
Payload Capacity 1,330 lb
Seating Capacity 2-4
Towing Capacity 1,200 lb
Lighting (2) Halogen headlights, (2) tail/brake lights

Overall Length 128.5 in
Overall Width 58.5 in
Overall Height 75.8 in
Estimated Dry Weight 1,521.5 lb**
Curb Weight 1,587.6 lb*
Wheelbase 85.2 in
Instruments Parking brake warning light, coolant temperature warning light, 12V DC outlet, fuel gauge, hour meter
Color Choices Dark Royal Red

All units are plus tax, destination, and assembly/pdi (all units are shipped and do not come complete).

Additional warranty options are available from Kawasaki
KAWASAKI PROTECTION PLUS™ BENEFITS
When your Limited Warranty ends, KPP steps in to keep you covered with nearly all the benefits of your original warranty, extending your peace of mind for countless miles ahead.
Kawasaki will handle repairs or replacements of covered parts at no cost to you – no deductibles involved. With prices today, the cost of parts alone could easily surpass the price of the entire contract. Plus, KPP is transferable, adding extra value to your Kawasaki if you sell your vehicle before the contract expires.

Destination

Covers the cost to transport the unit from the manufacturer to the dealership
Includes crating, shipping, fuel surcharges, and logistics handling

Assembly / PDI

Uncrating the unit
Professional assembly (specialty tools required)
Fluids, battery install, torque checks
Safety inspection and test run
This ensures your bike/ATV/SxS is safe, inspected, and warrantied correctly
Manufacturers require proper setup for the warranty to be valid
