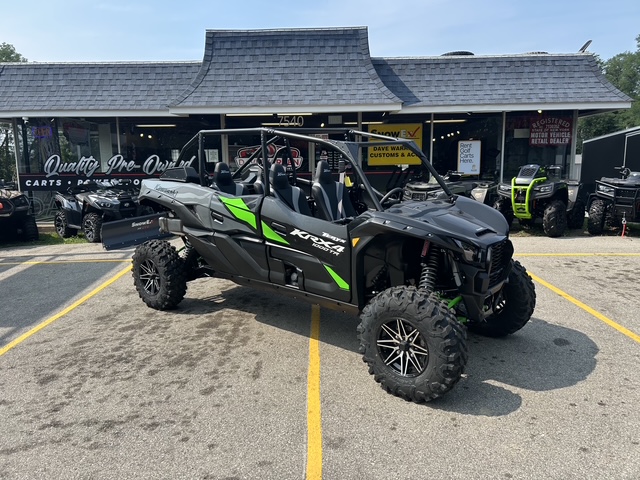

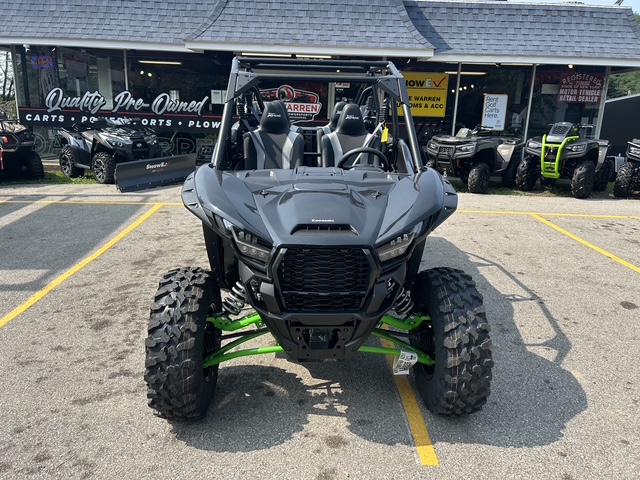

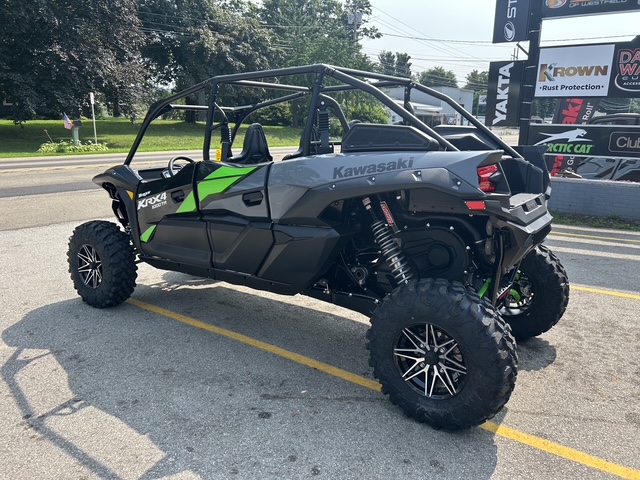

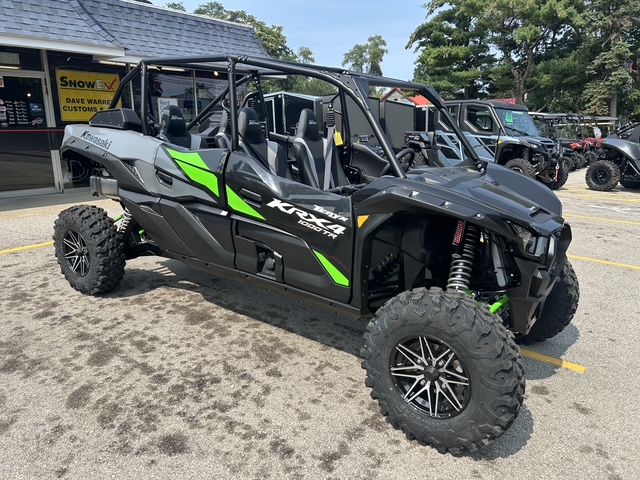

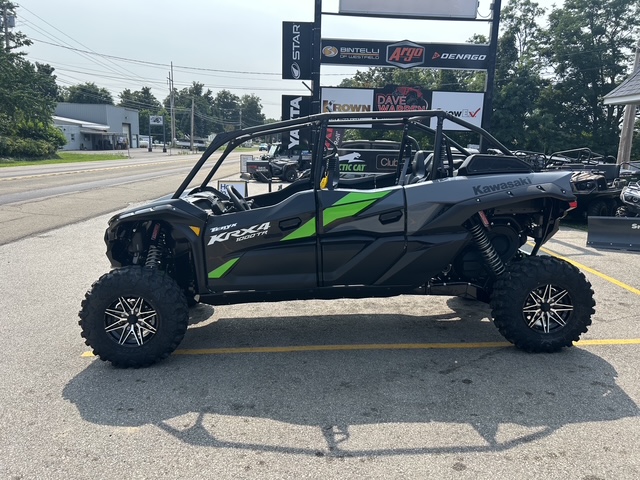

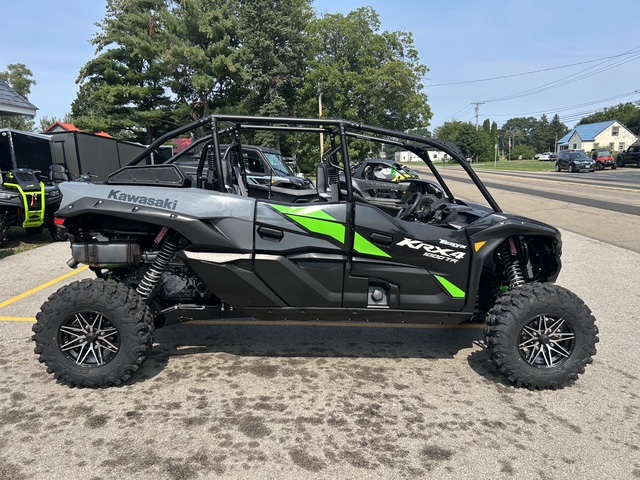

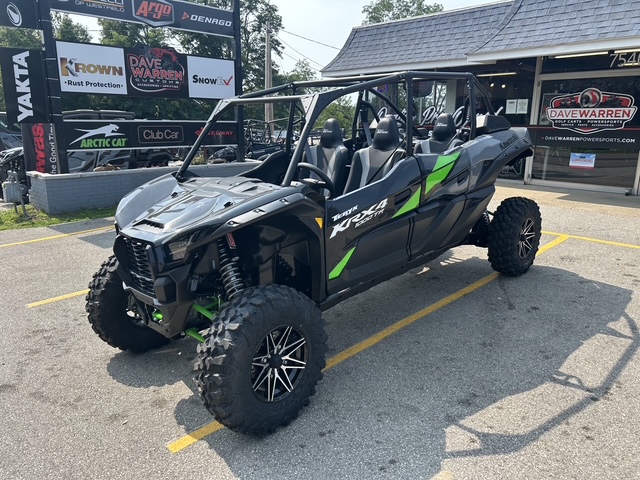

2027 KAWASAKI TERYX KRX4 TR- K10117

Dominate Adventure with more friends and family with 4-passenger seating on the TERYX® KRX4™ 1000. With an enlarged chassis, no sacrifices were made to accommodate additional passengers. Advanced suspension technology combined with beefy wheels and tires deliver the ultimate riding experience. The TERYX KRX4 1000 reinforces and elevates the reputation of purpose-built Kawasaki sport side x sides.

Now, a 64-in wide side x side, the TERYX® KRX4™ 1000 TR, is purpose-built to dominate tight, technical terrain with comfort and precision. It brings the proven terrain-taming combination of power, performance, and capability into a more agile, trail-focused package, giving you the confidence to take on narrower trail conditions.

FEATURING:

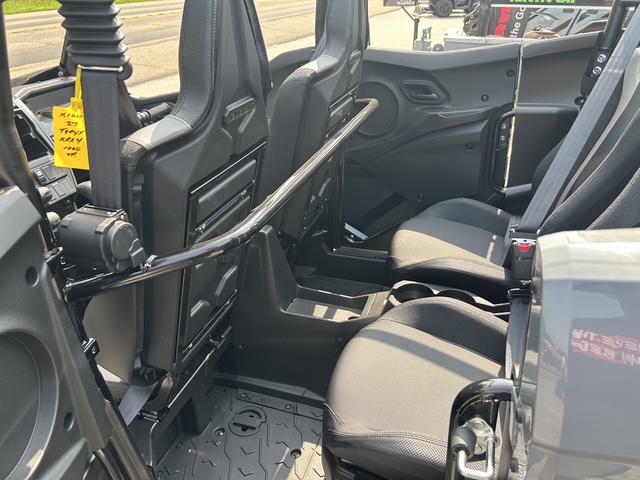

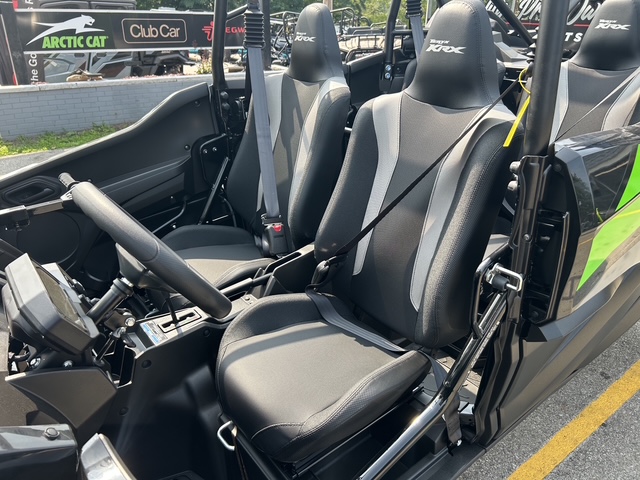

SPACIOUS, 4-PASSENGER SEATING
POWERFUL, HIGH-TORQUE 999cc PARALLEL-TWIN ENGINE
CONTINUOUSLY VARIABLE TRANSMISSION (CVT) WITH CENTRIFUGAL CLUTCH
ON-THE-FLY ELECTRICALLY SELECTABLE 2WD/4WD & FRONT DIFFERENTIAL LOCK AND ADJUSTABLE POWER MODE SELECTION
SPEED-SENSITIVE ELECTRIC POWER STEERING
MASSIVE GROUND CLEARANCE AND LONG-TRAVEL SUSPENSION
HIGHLY RIGID FRAME WITH INTEGRATED ROLL-OVER PROTECTIVE STRUCTURE (ROPS)
HIGH-OUTPUT AC GENERATOR
OVER 50 KAWASAKI GENUINE ACCESSORIES (SOLD SEPARATELY)

ADDITIONAL VEHICLE FEATURES:
64-in trail-ready stance for tight wooded trails
Comfort-focused suspension settings

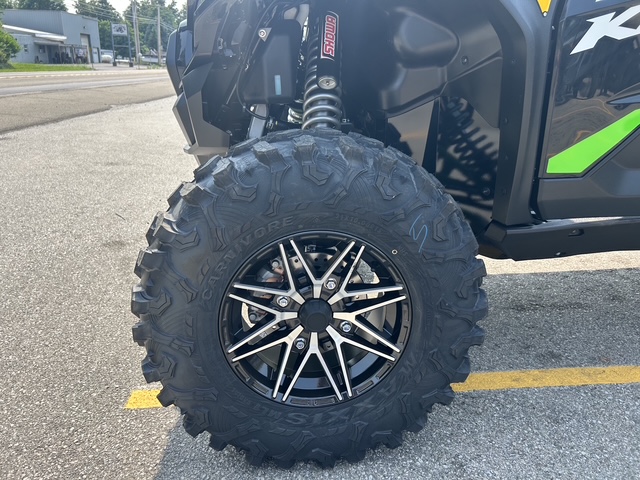

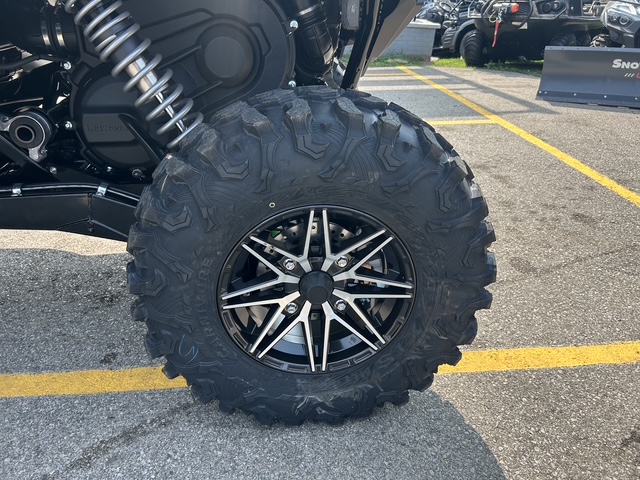

31-in Maxxis® Carnivore tires with 15-in alloy wheels

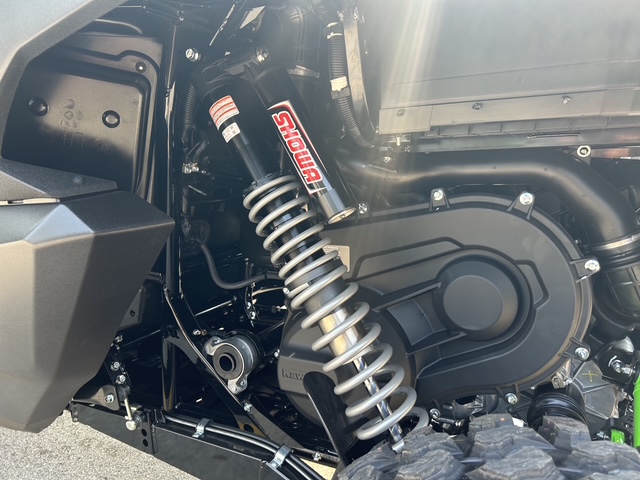

Showa 2.5 piggyback shocks
Skid plates with drain holes
Downhill engine braking
Exclusive TR badging

Engine 4-stroke, DOHC, 8-valve parallel-twin, liquid cooled
Displacement 999cc
Maximum Horsepower 110.0 hp¹ @ 8,500 rpm
Maximum Torque 75.2 lb-ft @ 7,000 rpm
Bore x Stroke 92.0 x 75.1mm
Compression Ratio 11.5:1
Fuel System DFI® with (2) 50mm throttle bodies
Ignition TCBI with electronic advance
Starting System Electric

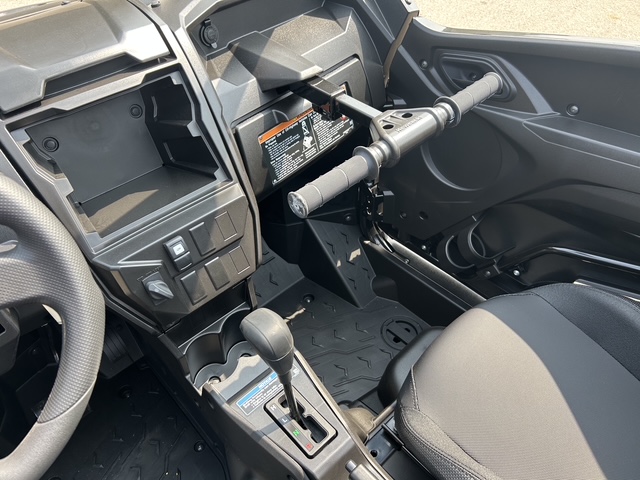

Transmission Automatic CVT with centrifugal clutch (H,L,N,R)
Final Drive Selectable 2WD/4WD with locking front differential, shaft
Engine Braking Yes

Front Suspension / Wheel Travel Double wishbone, Showa 2.5 shocks with piggyback reservoir, fully adjustable preload, and 24-position adjustable compression damping/17.0 in
Rear Suspension / Wheel Travel 4-link trailing-arm rear suspension, Showa 2.5 shocks with piggyback reservoir, fully adjustable preload, and 24-position adjustable compression damping/18.6 in
Front Tires Maxxis® Carnivore 31 x 10.00R15 8PR
Rear Tires Maxxis® Carnivore 31 x 10.00R15 8PR
Wheel Type Alloy

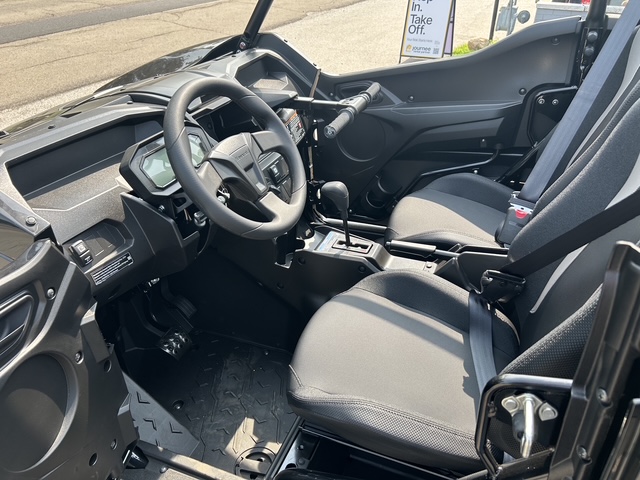

Steering Electric Power Steering (EPS) / rack-and-pinion
Front Brakes 258mm dual hydraulic discs with 2-piston calipers
Rear Brakes 258mm dual hydraulic discs with single-piston calipers
Ground Clearance 14.8 in (max), 14.2 in (std)
Fuel Capacity 10.6 gal
Turning Radius 23.3 ft

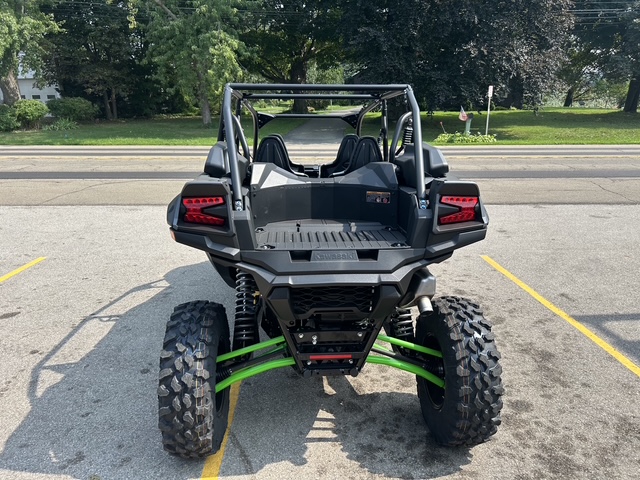

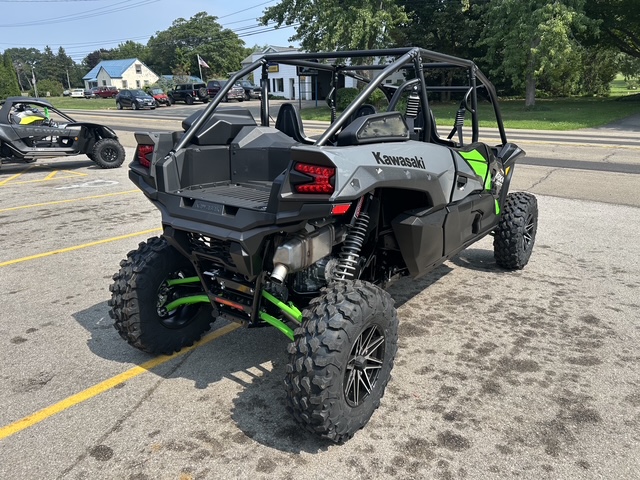

Cargo Bed Dimensions (LxWxH) 14.6 x 33.1 x 9.1 in
Cargo Bed Load Capacity 351 lb
Payload Capacity 1,001 lb
Seating Capacity 4
Towing Capacity N/A
Lighting (2) LED headlights, (2) LED taillights, LED stoplight

Frame Ladder type, tubular steel
Overall Length 157.9 in
Overall Width 63.8 in
Overall Height 76.0 in
Estimated Dry Weight 2,024.2 lb** / 2,026.4 lb** CA Model
Curb Weight 2,125.6 lb* / 2,127.8 lb* CA Model
Wheelbase 126.4 in

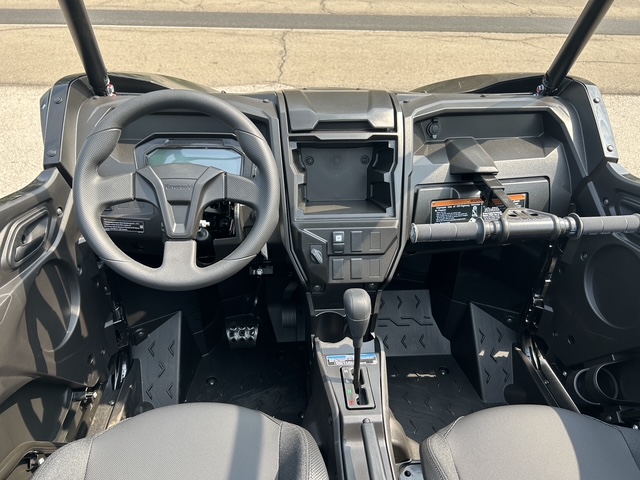

Instruments Multi-function digital meter with bar-style tachometer (2 display options), digital speedometer, bar-style fuel gauge, gear indicator (L, H, N, R), Power Mode, driving mode (2WD/4WD/4WD+Diff Lock) indicator, Economical Riding Indicator, clock, odometer, dual trip meters, hour meter, water temperature, digital battery gauge, bar-style CTV temperature, seatbelt warning lamp, oil warning lamp, engine check lamp, water temperature warning lamp, neutral indicator lamp, reverse indicator lamp, parking indicator lamp, EPS warning lamp, and CVT belt warning lamp
Additional Features Skid plates w/ drain holes

All units are plus tax, destination, and assembly/pdi (all units are shipped and do not come complete).

Additional warranty options are available from Kawasaki

KAWASAKI PROTECTION PLUS™ BENEFITS
When your Limited Warranty ends, KPP steps in to keep you covered with nearly all the benefits of your original warranty, extending your peace of mind for countless miles ahead.
Kawasaki will handle repairs or replacements of covered parts at no cost to you – no deductibles involved. With prices today, the cost of parts alone could easily surpass the price of the entire contract. Plus, KPP is transferable, adding extra value to your Kawasaki if you sell your vehicle before the contract expires.

Destination

Covers the cost to transport the unit from the manufacturer to the dealership
Includes crating, shipping, fuel surcharges, and logistics handling

Assembly / PDI

Uncrating the unit
Professional assembly (specialty tools required)
Fluids, battery install, torque checks
Safety inspection and test run
This ensures your bike/ATV/SxS is safe, inspected, and warrantied correctly
Manufacturers require proper setup for the warranty to be valid
