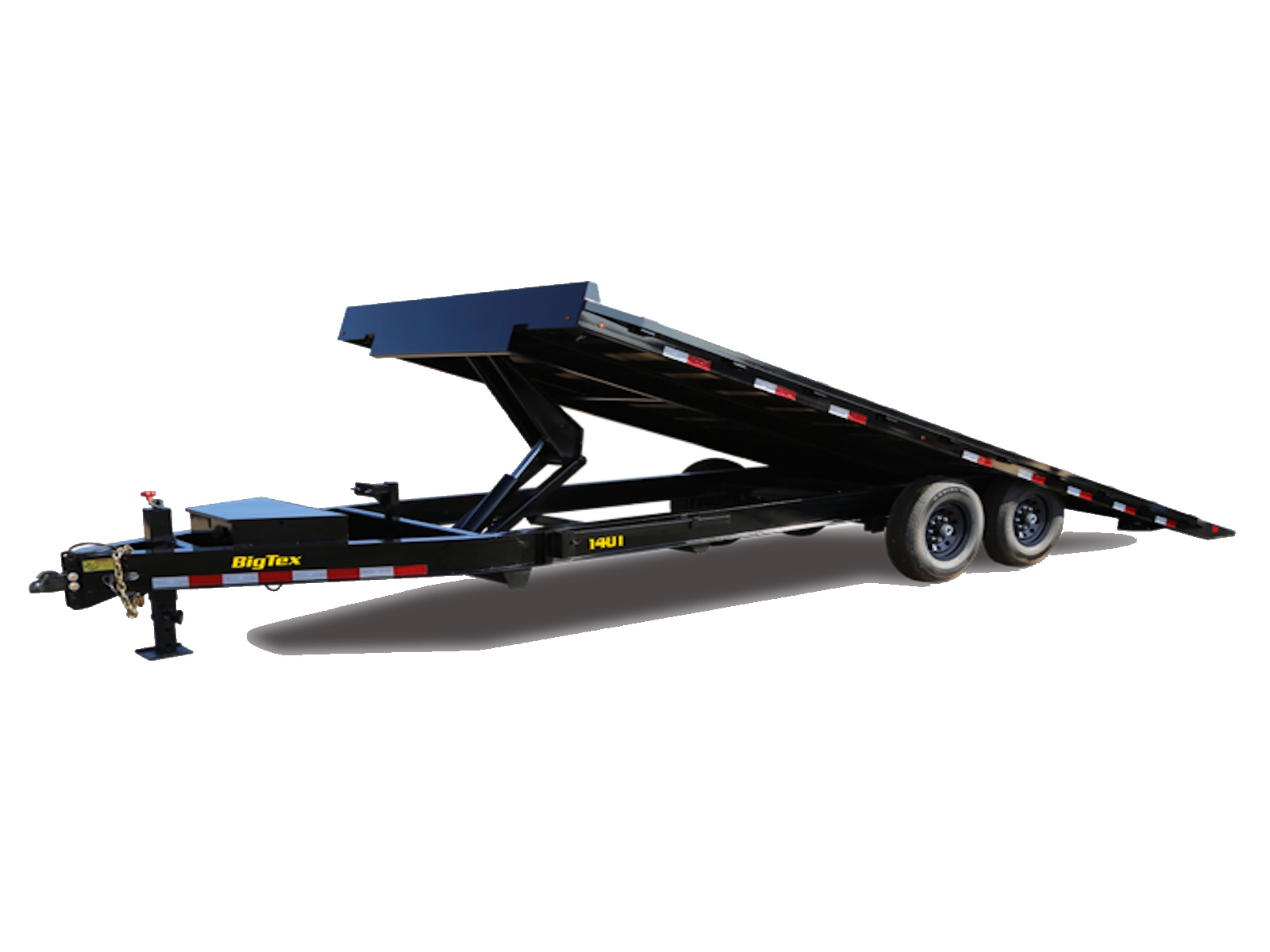

2027 Big Tex 14OT-22

14OT

Heavy Duty Over-The-Axle Tilt

Bring your low-profile equipment hauling to new heights with the 14OT Heavy Duty Over-the-Axle Tilt Bed Equipment Trailer. It’s unlike any of our other trailers, highlighted by a scissor-style hydraulic hoist that offers stability, energy efficiency, and less maintenance than other systems. With a rear knife edge, a full 96”-wide tilt platform, and a winch mount plate at the front of the platform, you can take your productivity into overdrive with this over-the-axle workhorse.

Effortless Maintenance

Forward, self-adjusting brakes make brake maintenance a breeze. The system automatically adjusts the brake shoes as they wear down, eliminating the need for manual adjustments.

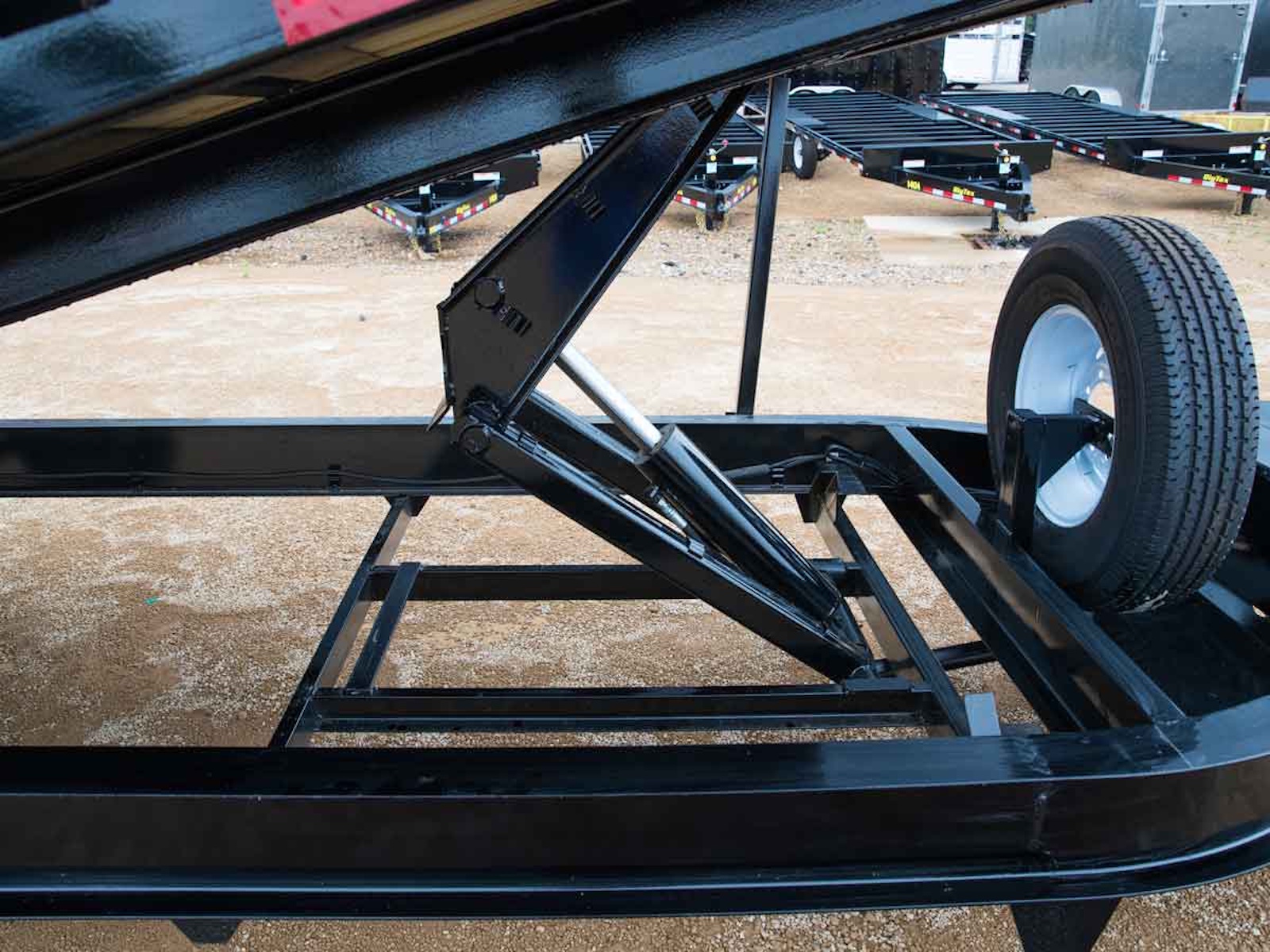

Hydraulic Scissor Lift System with Power Up/Power Down

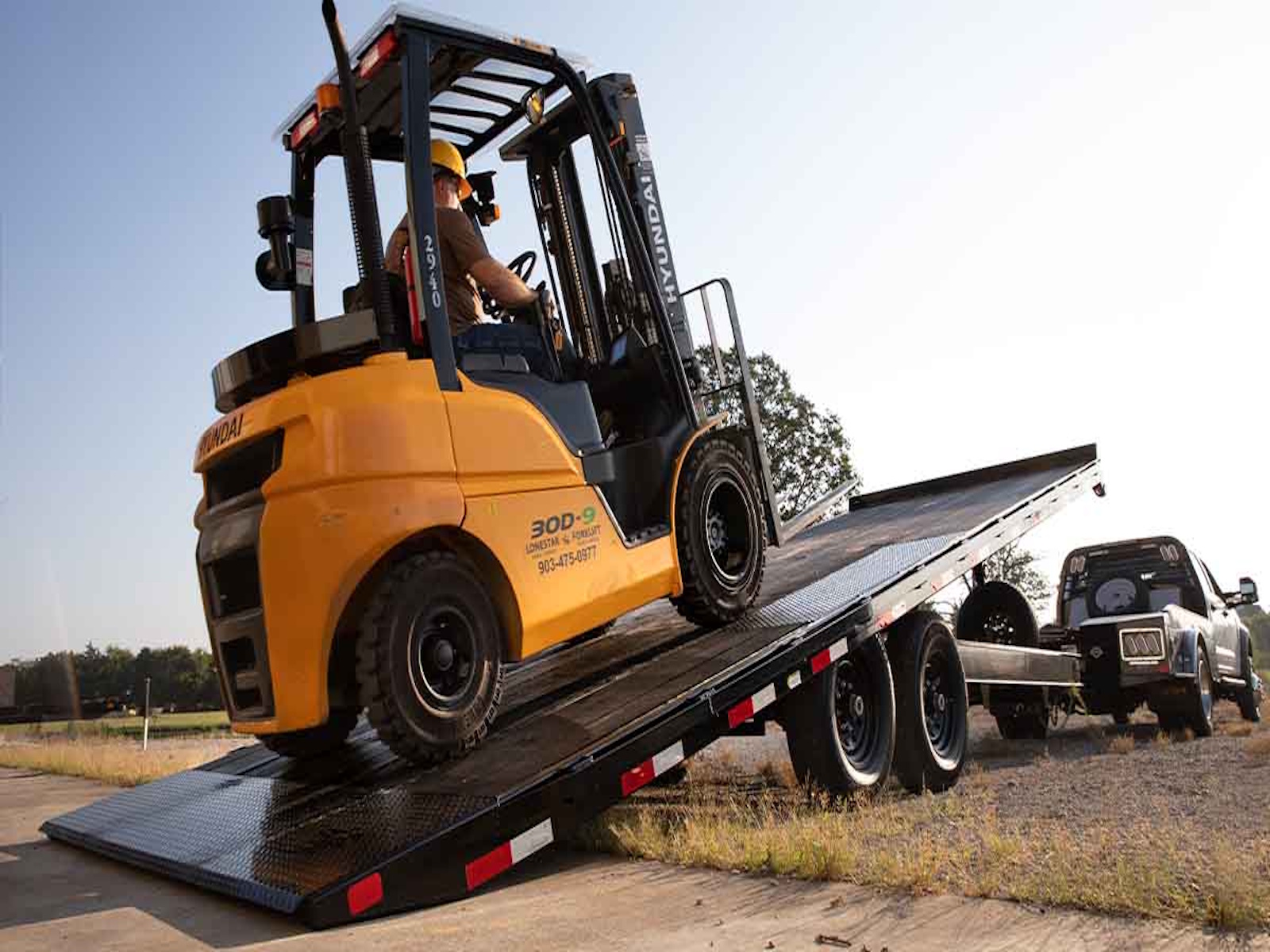

An efficient and strong hydraulic lifting system that makes loading and unloading a simple task.

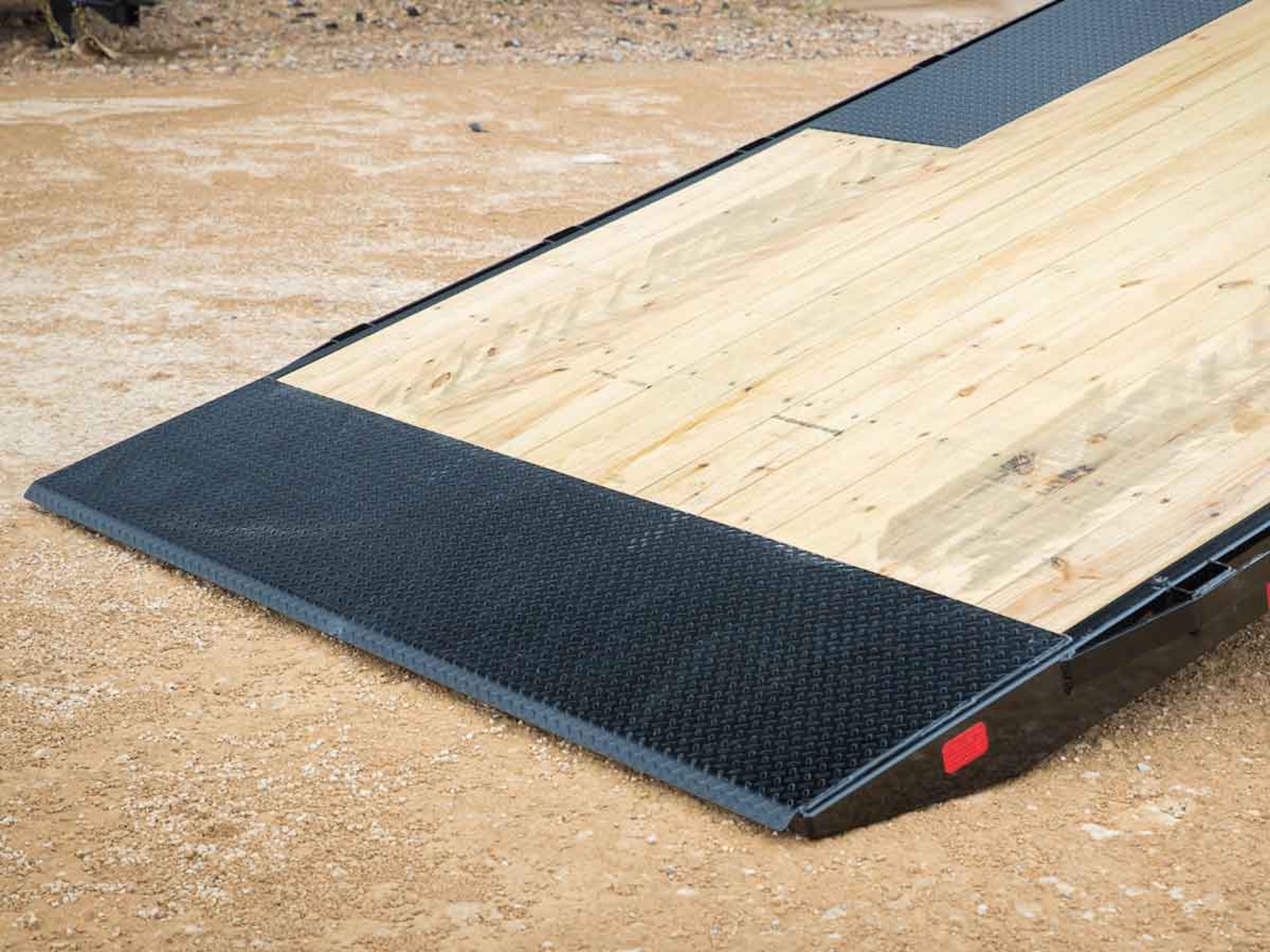

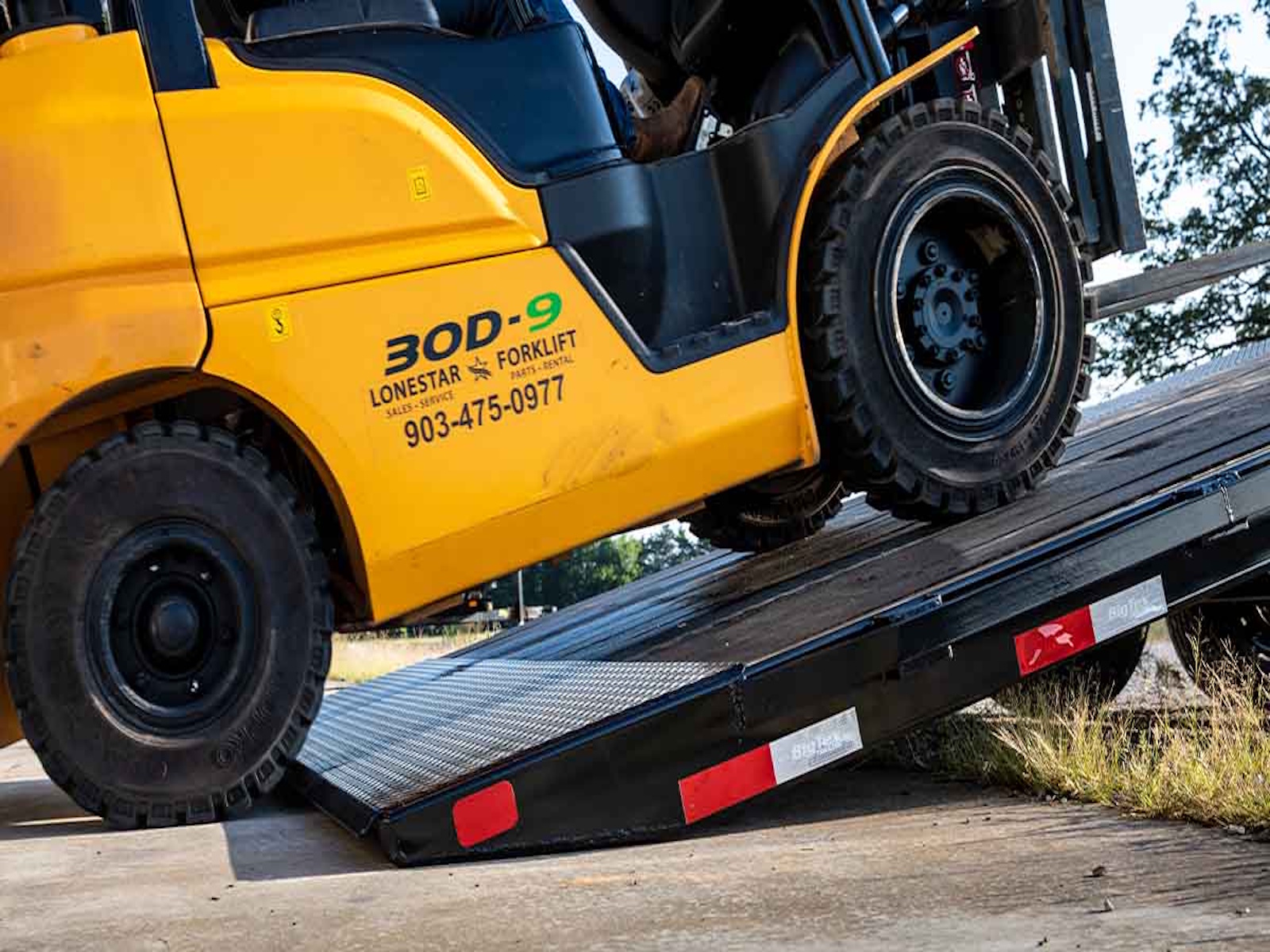

Rear Knife Edge with Collapsible Bumper

A knife edge at the rear makes loading and unloading easy and provides a smooth transition. The collapsible rear bumper also provides additional safety.

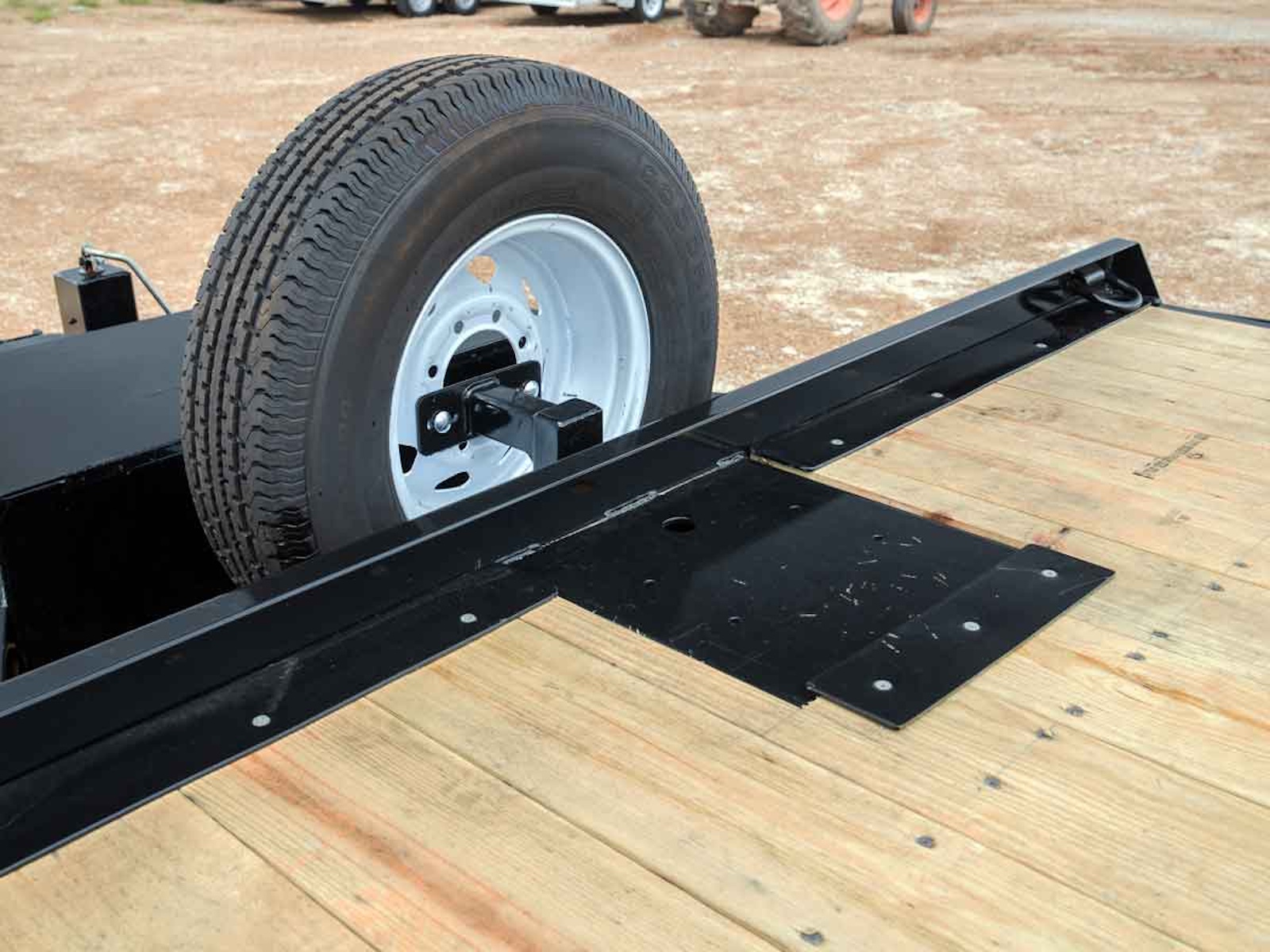

Front Mount Winch Plate Standard

Add an electric winch to the tilt platform with ease by using the standard equipped winch mount plate

Features May Include:

Axles

• 2 - 7,000# Premium, with Quick-Lubricating Hubs

Brakes

• Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

• Multi-Leaf Slipper Spring w/ Equalizer

Coupler

• Adjustable 2-5/16” Demco EZ Latch, Round Adjustable Pin 2-5/16” on Gooseneck Model

Safety Chains

• 3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

• 12,000# Drop-Leg Jack (Side Wind) Dual Jacks on Gooseneck Model

Frame

• 8" I-Beam, 10# / 13# on 26' Models

Cross-Members

• 3" Channe

Front Stop Rail

• 3/16" Fabricated Front Stop Rail (Bumper Pull Only)

Floor

• Treated Pine Floor

Stake Pockets

• Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

• 7-Way RV

Lights

• Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

• Sealed, Modular Cold-Weather Wiring Harness

Tires

• ST235/80 R-16 Load Range E Radial Tires

Bolt Pattern

• 8-Bolt

Spare Mount

• Front Spare Tire Mount

Paint Type

• Professional Finish w/ Primer Standard

Paint Color

• Black

Tilt Deck Dimensions

• 102" Wide with 1/4" Diamond plate Knife Edge

Tilt Deck Operation

• Power Up/Power Down with Hydraulic System

Rubrail

• Rub Rail Along Both Sides

Break-Away Kit

• Complete Breakaway System w/ Zip™ Breakaway Cable and Charger

Power

• Power Up/Power Down & Gravity Down Hydraulic Pump

Tilt Deck Angle

• 16°

Winch Plate

• Front Mounted Steel Winch Plate

Options:

• Adjustable Pintle in Channel in Lieu of Coupler
• 12,000# Elec/Hyd. Jack BY Stillwell™,Dual Elec/Hyd 12,000# Jacks by Stillwell™,Dual Single-Speed Drop-Leg Jacks,Dual 2-Speed Landing Gear
• Blackwood Pro Rubber Infused Lumber Floor (per linear foot)
• Tire Upgrade (ST235/80 R-16 LR-G)
• Spare Tire & Wheel (ST235/80 R-16 LR-E), Spare Tire Upgrade (ST235/80 R-16 LR-G)
• Red,Grey,White,Desert Tan,Jet Blue,Slime Green,Implement Green,Equipment Orange,Medium Yellow
• Extra 5/8" D-Rings
