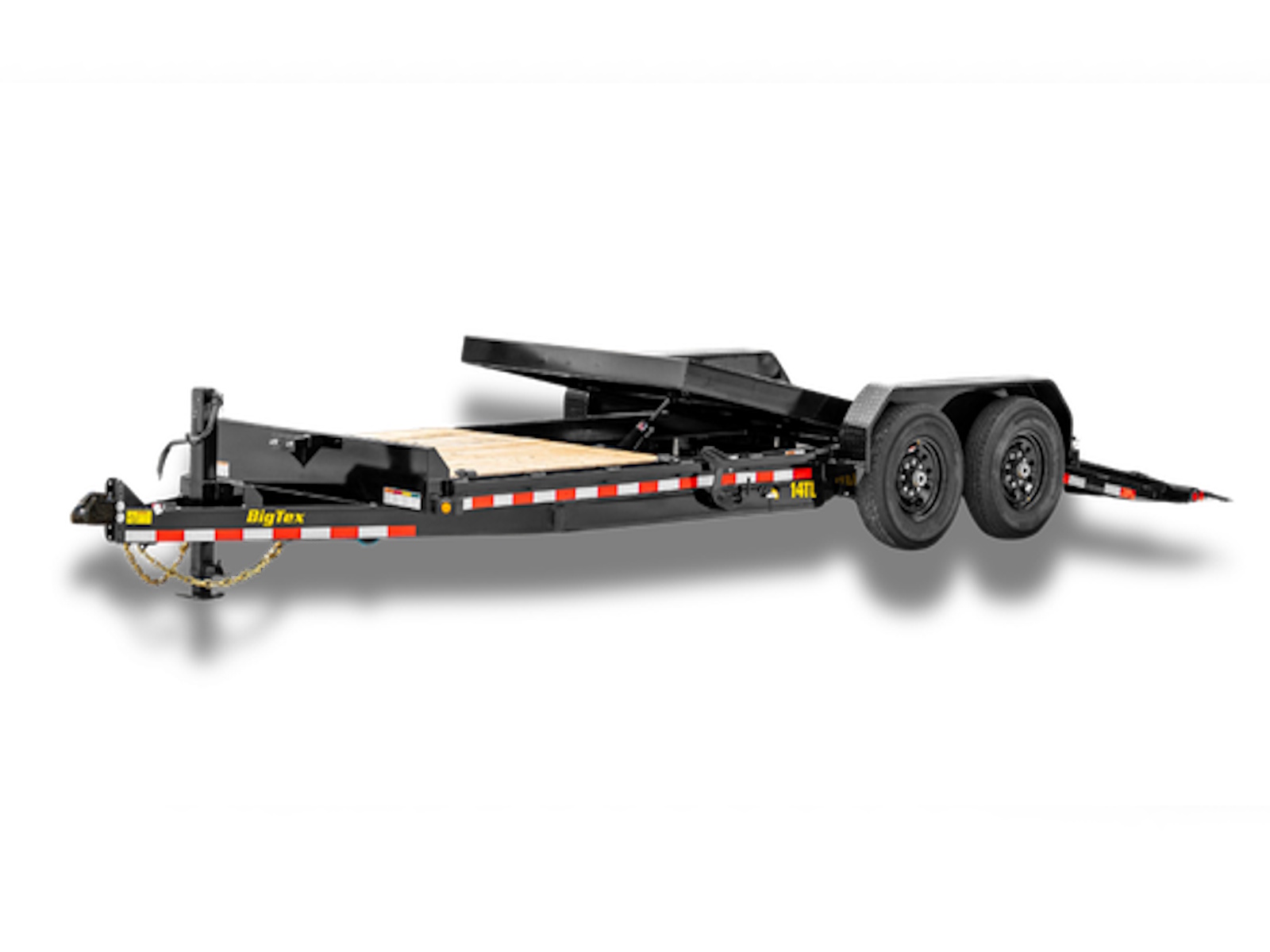

2027 Big Tex 14TL-22

14TL

Heavy Duty Tilt Bed Equipment Trailer

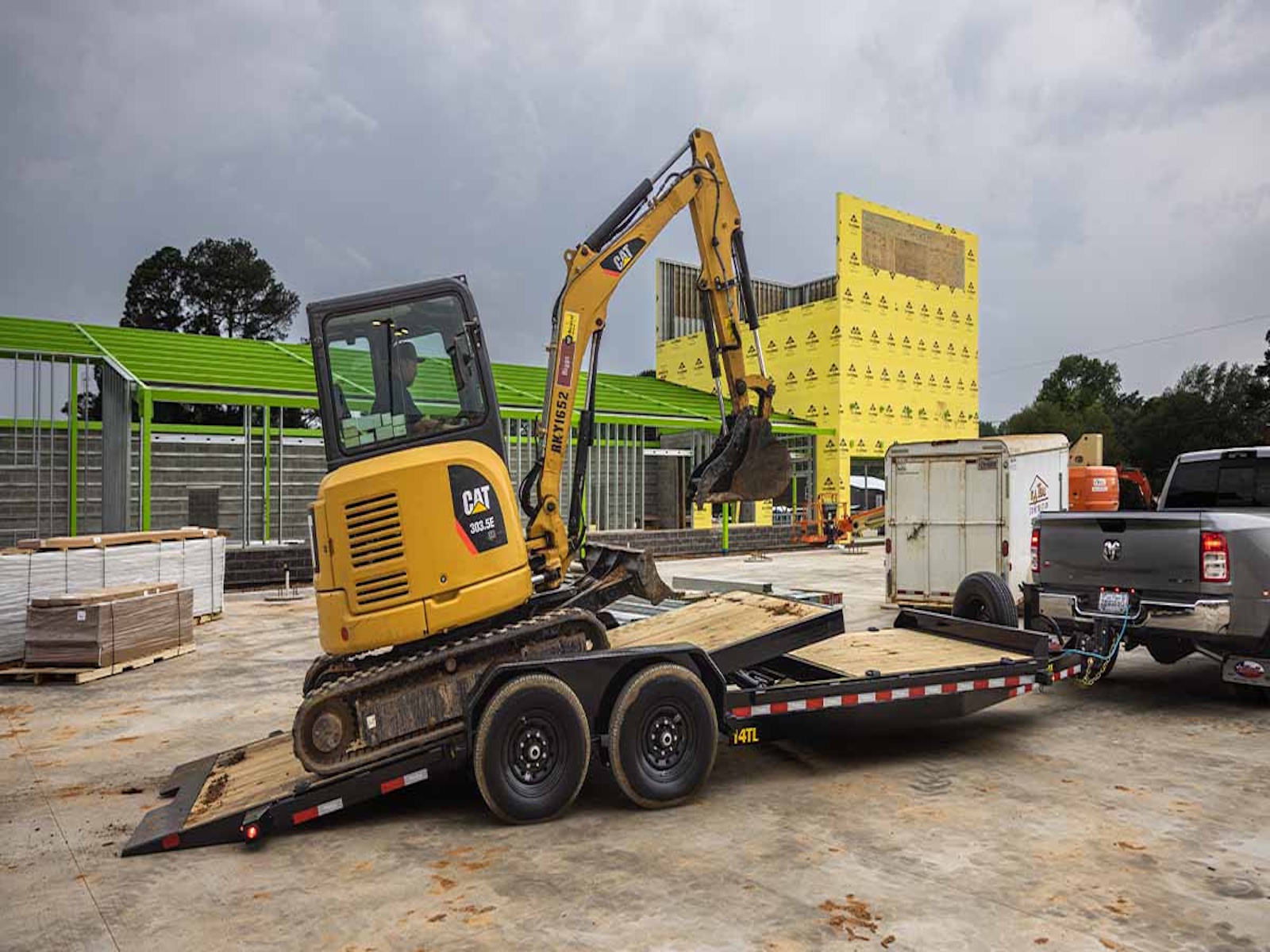

With a little bit of everything to keep you rolling on your equipment hauling tasks, the 14TL Heavy Duty Tilt Bed Equipment Trailer features a rear tilt deck as well as a stationary front deck. You can stay in control of your equipment with a hydraulic dampening system with a control valve for smooth loading and unloading. And with a fabricated front stop rail and expanded cargo space, you can use every inch of your bed for maximum hauling efficiency. Get ready for a new level of productivity.

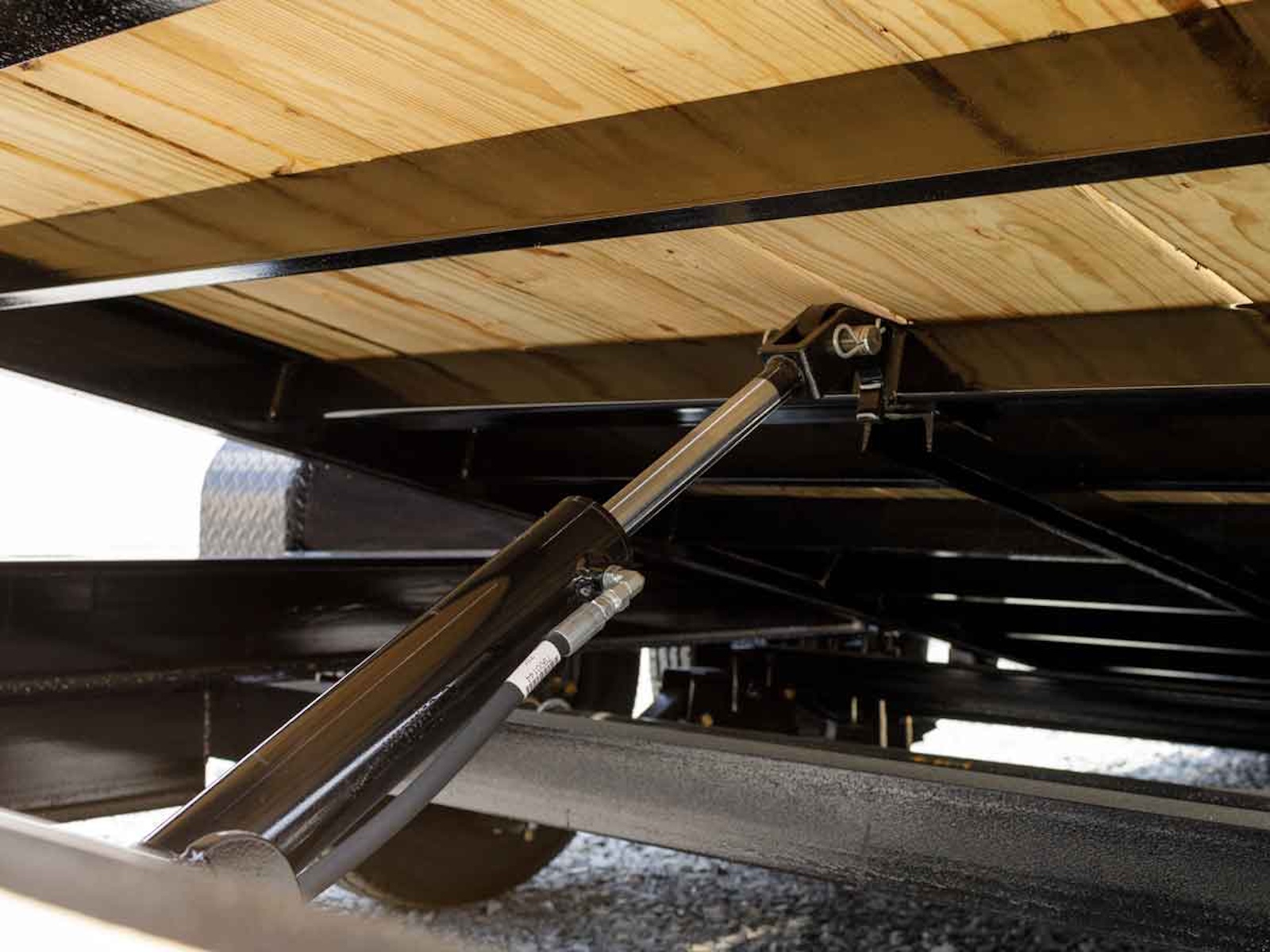

Valve Control on Hydraulic Cylinder

A hydraulic dampening system with valve control can lock the cylinder to make loading smooth and easy while ensuring your cargo is secured for the long haul.

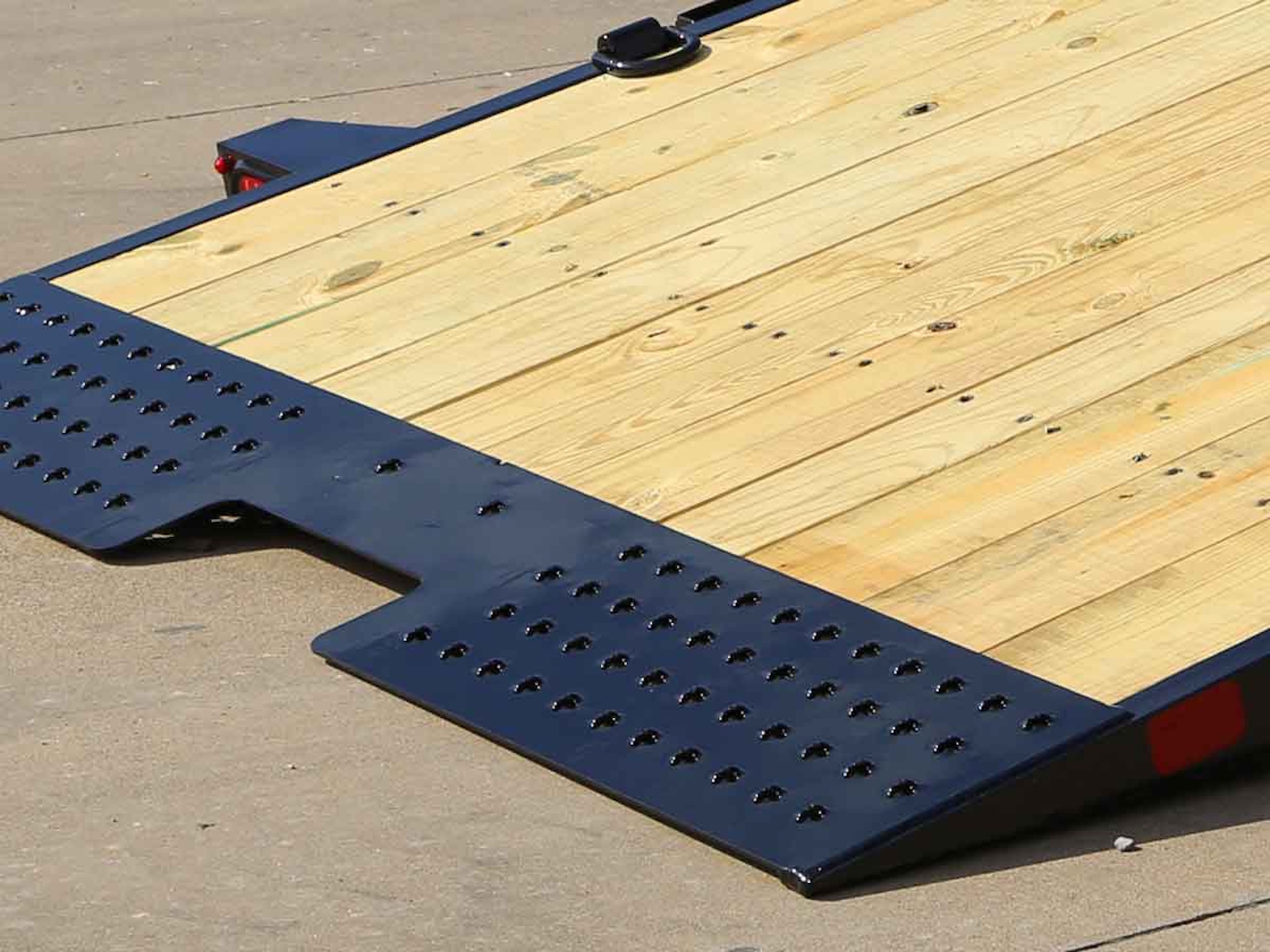

Rear Knife Edge

Tow a wide variety of equipment and small vehicles with the versatile 1/4" diamond plate rear knife edge.

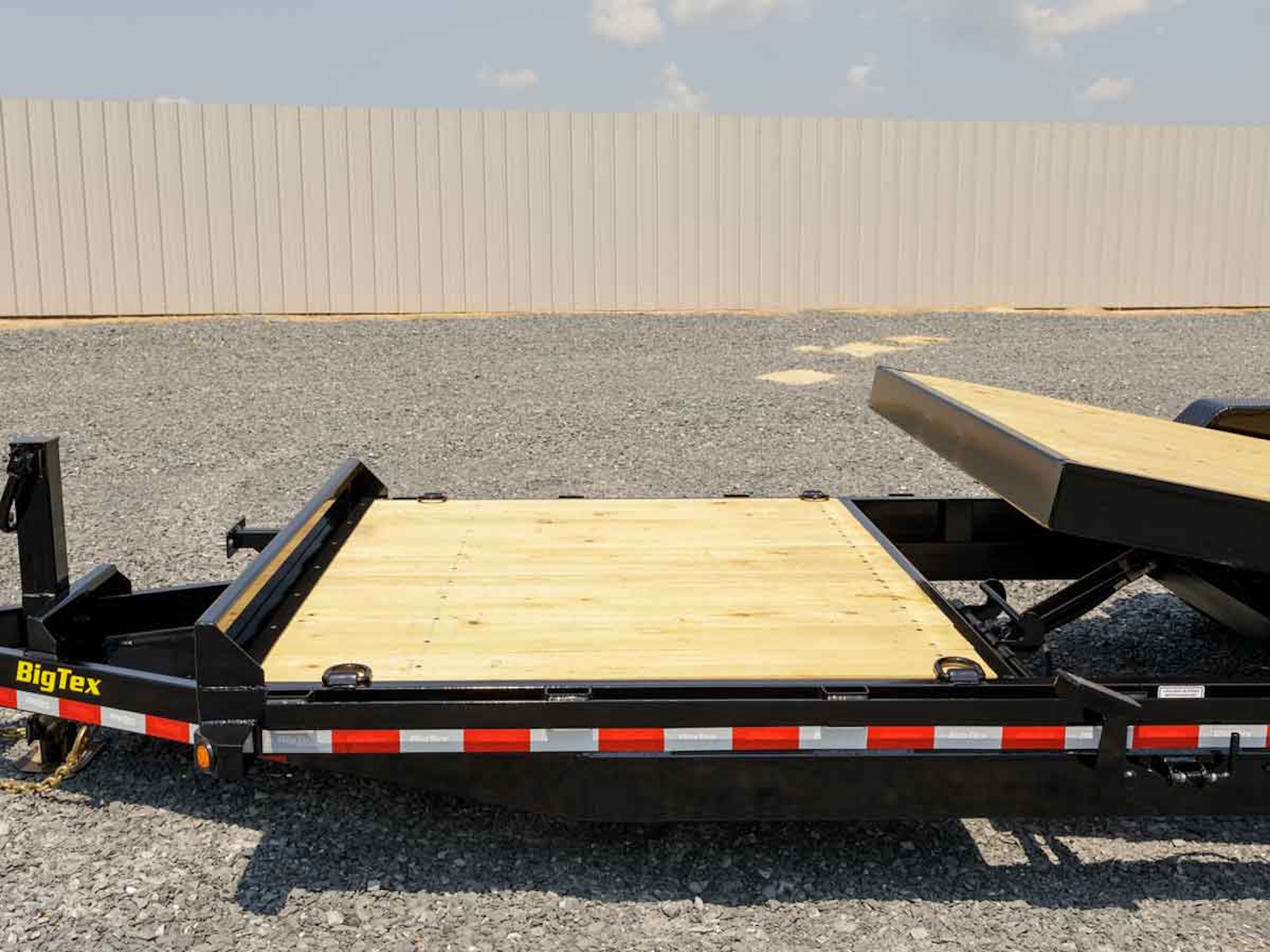

Stationary Front Deck

This trailer brings the best of both worlds, with a stationary front deck for added stability and versatility.

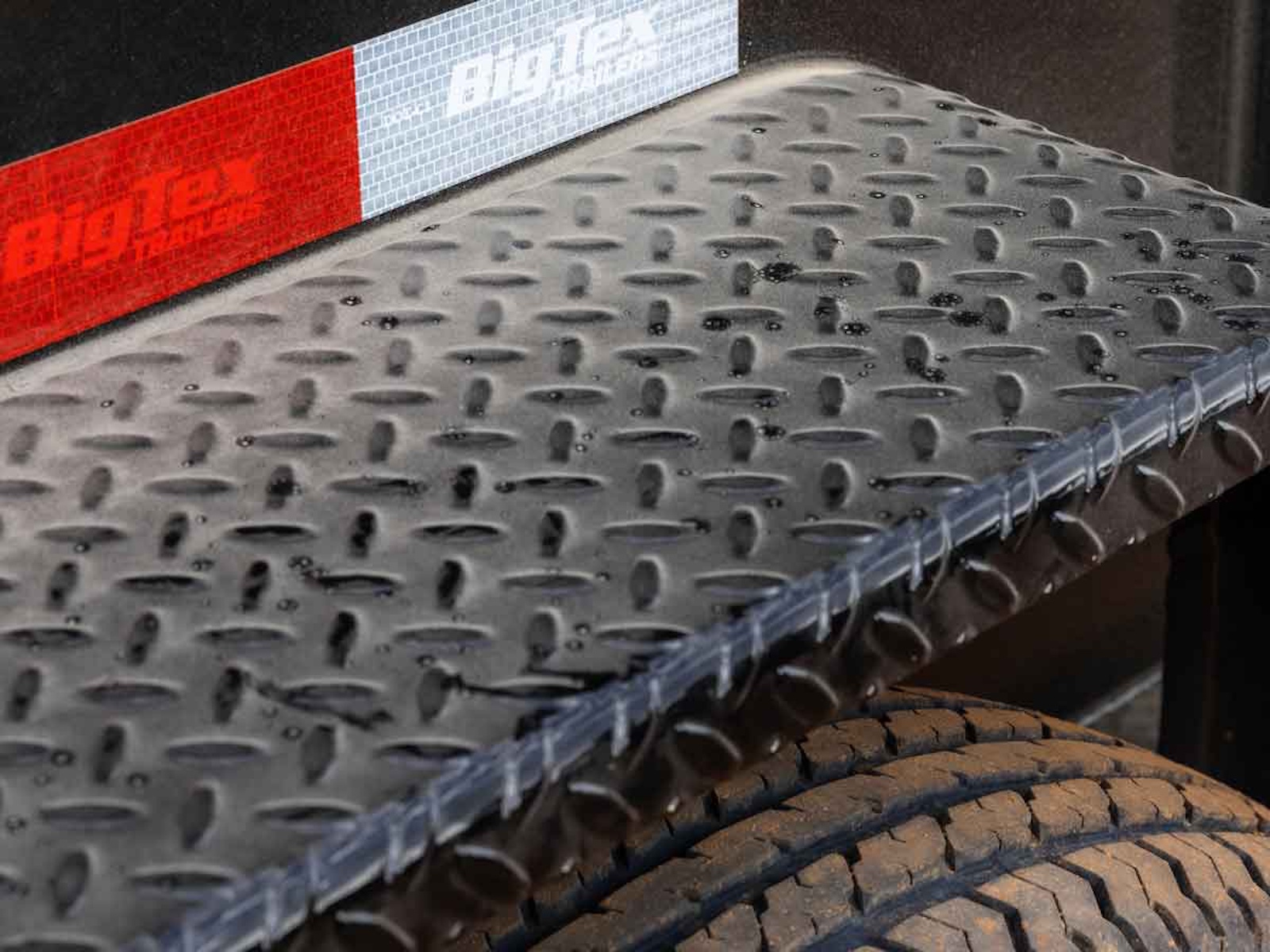

Heavy Duty Diamond Plate Steel Fenders

Built to stand up to whatever punishment is thrown at it, these fenders keep your trailer protected and are also removable to allow for easy replacement if damaged.

Features May Include:

Axles

• 2 - 7,000# Premium, 4" Drop-Axles with Quick-Lubricating Hubs

Brakes

• Forward Self-Adjusting Electric Brakes on Both Axles

Suspension

• Multi-Leaf Slipper Spring w/ Equalizer

Tongue

• 6” Channel Fold Back/Wrap Tongue
• 10" I-Beam (XX#) Neck on Gooseneck models

Coupler

• Round Adjustable Pin 2-5/16” on Gooseneck Model
• Adjustable 2-5/16” Demco EZ Latch

Safety Chains

• 3/8" Grade 70 w/ Safety Latch Hook (2 ea)

Jack

• 12,000# Drop-Leg Jack (Side Wind)
• Dual Jacks on Gooseneck Model

Frame

• 6" Channel

Cross-Members

• 3" Channel on 16" Centers

Front Stop Rail

• 3/16" Fabricated Front Stop Rail (Bumper Pull Only)

Floor

• Treated Pine Floor

Fenders

• 9” x 72” 14 Ga. Diamond Plate Double Square Broke w/Back (Removable)

Stake Pockets

• Stake Pockets Along Both Sides (Quantity Varies by Length)

Trailer Plug

• 7-Way RV

Lights

• Recessed, Grommet-Mounted L.E.D. Lighting

Wiring

• Sealed, Modular Cold-Weather Wiring Harness

Tires

• ST235/80 R-16 Load Range E Radial Tires

Bolt Pattern

• 8-Bolt

Wheels

• Black Mod

Spare Mount

• Front Spare Tire Mount

Paint Type

• Professional Finish w/ Primer Standard

Paint Color

• Black

Tilt Deck Dimensions

• 16'x75" Wide (83" Between Fenders) with 1/4" Diamond plate Knife Edge

Tilt Deck Operation

• Hydraulic Dampening with Valve Control and Single Side, EZ Pedal Locking Mechanism

Stationary Deck Area

• 4' x 83" (20' Models)
• 6'x 83" (22' Models)

Rubrail

• Rub Rail Along Both Sides

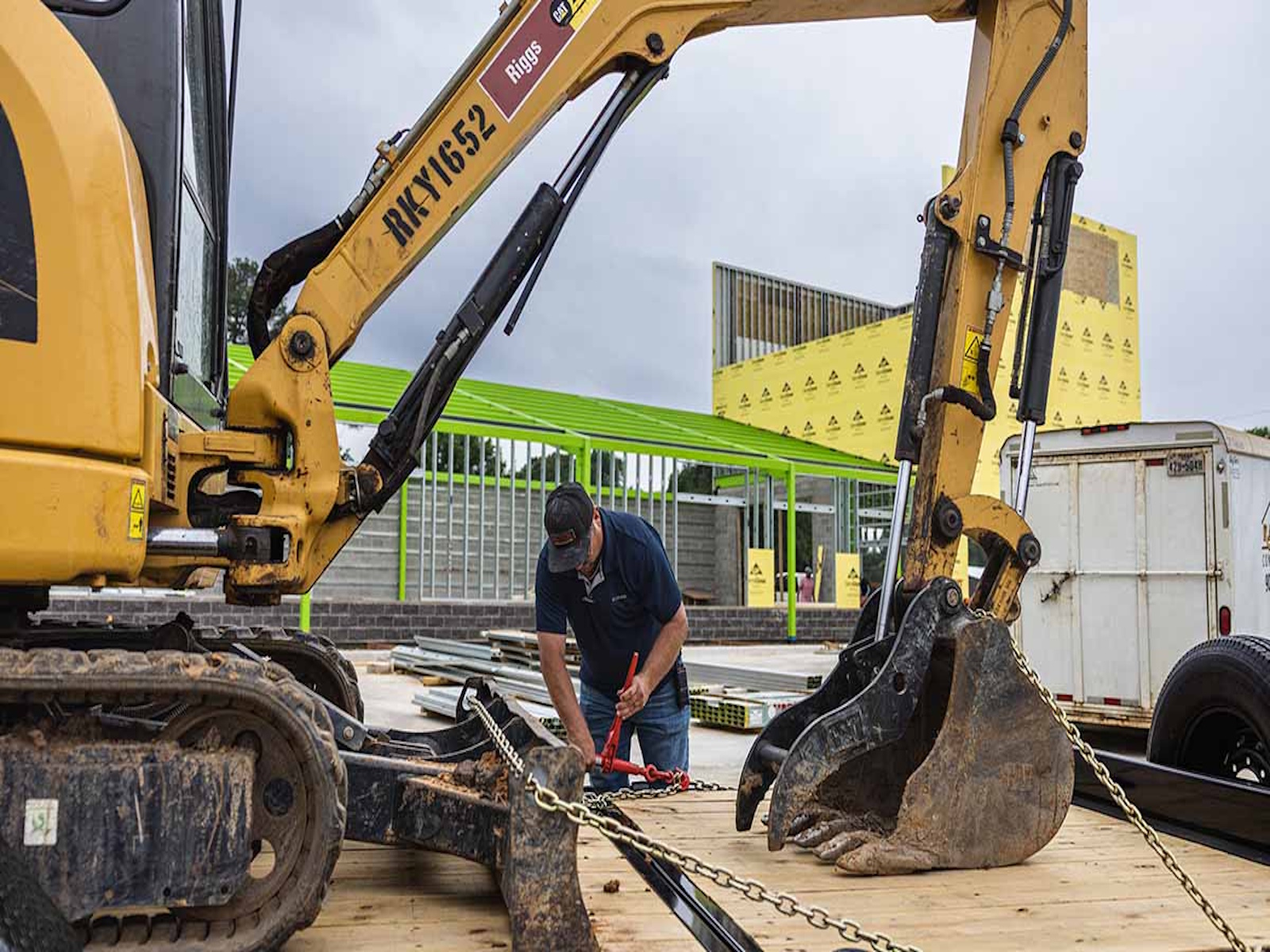

Tie-Downs

• (6) 5/8" D-Rings

Break-Away Kit

• Complete Breakaway System w/ Zip™ Breakaway Cable and Charger

Tilt Deck Angle

• 12°

Options:

• Adjustable Pintle in Channel in Lieu of Coupler
• Blackwood Pro- Outer Deck Only (X Length of Trailer), Blackwood Pro Rubber Infused Lumber Floor (per linear foot),1/8” Diamond Plate Steel Floor (Per Square Foot)
• Tire Upgrade (ST235/80 R-16 LR-G)
• Spare Tire & Wheel (ST235/80 R-16 LR-E), Spare Tire Upgrade (ST235/80 R-16 LR-G)
• Red,Grey,White,Desert Tan,Jet Blue,Slime Green,Implement Green,Equipment Orange,Medium Yellow
• Extra 5/8" D-Rings, Recessed D-Ring in Floor (Steel Floor Only)
